B72220X2301K101V57

Active

EPCOS - TDK Electronics

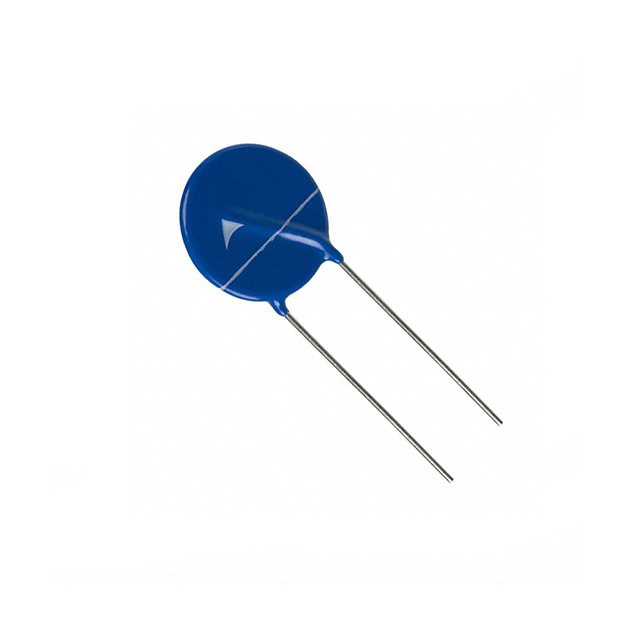

VARISTOR 300V DISC 20MM

Search across all available documentation for this part.

Active

EPCOS - TDK Electronics

VARISTOR 300V DISC 20MM

Technical Specifications

Parameters and characteristics commom to parts in this series

VARISTOR 430V 10KA DISC 20MM

Part	Current - Surge	Varistor Voltage (Typ)	Energy	Maximum AC Volts [Max]	Varistor Voltage (Max) [Max]	Mounting Type	Maximum DC Volts [Max]	Varistor Voltage (Min) [Min]	Package / Case	Capacitance @ Frequency	Qualification	Grade	Operating Temperature [Min]	Operating Temperature [Max]	Number of Circuits	Maximum AC Volts
EPCOS - TDK Electronics B72220X2271K501	10 kA	430 V	215 J	275 V	473 V	Through Hole	350 V	387 V	Disc 20mm	850 pF	AEC-Q200	Automotive	-40 °C	125 °C	1
EPCOS - TDK Electronics B72220X2301K101V57						Through Hole			Disc 20mm		AEC-Q200	Automotive	-40 °C	125 °C	1	300 V
EPCOS - TDK Electronics B72220X3321K102				320 V		Through Hole			Disc 20mm		AEC-Q200	Automotive	-40 °C	125 °C	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Varistor 1 Circuit Through Hole Disc 20mm
