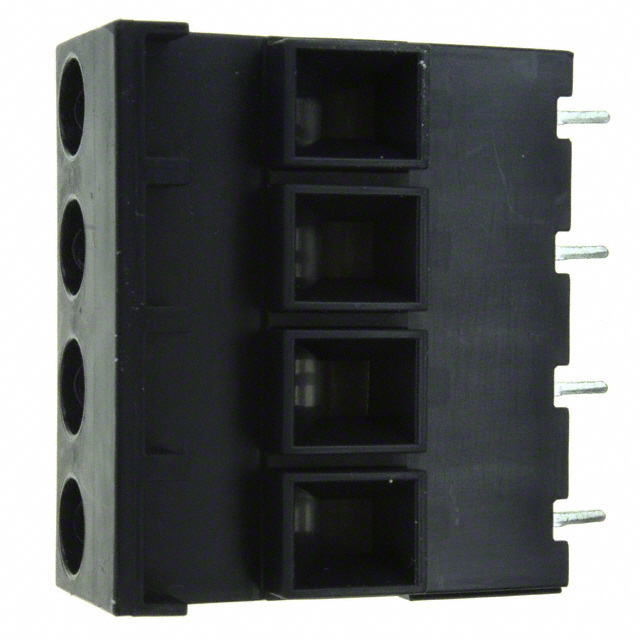

ELMP04041
ObsoleteAMPHENOL PCD
TERM BLK 4P SIDE ENT 10.16MM PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ELMP04041
ObsoleteAMPHENOL PCD
TERM BLK 4P SIDE ENT 10.16MM PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ELMP04041 |
|---|---|
| Clamp Material - Plating | Copper Alloy - Nickel Plated |
| Color | Black |
| Contact Material - Plating | Copper Alloy - Tin Plated |
| Current | 60 A |
| Features | Interlocking (Side) |
| Housing Material | Polyamide (PA), Nylon |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 10.16 mm |
| Pitch [x] | 0.4 in |
| Positions Per Level | 4 |
| Screw Material - Plating | Steel, Zinc Plated |
| Torque - Screw | 12 Lb-In |
| Torque - Screw | 1.36 Nm |
| Voltage | 300 V |
| Wire Gauge [Max] | 18 AWG |
| Wire Gauge [Min] | 8 AWG |
| Wire Termination | Screw - Rising Cage Clamp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ELMP040 Series
4 Position Wire to Board Terminal Block Horizontal with Board 0.400" (10.16mm) Through Hole
