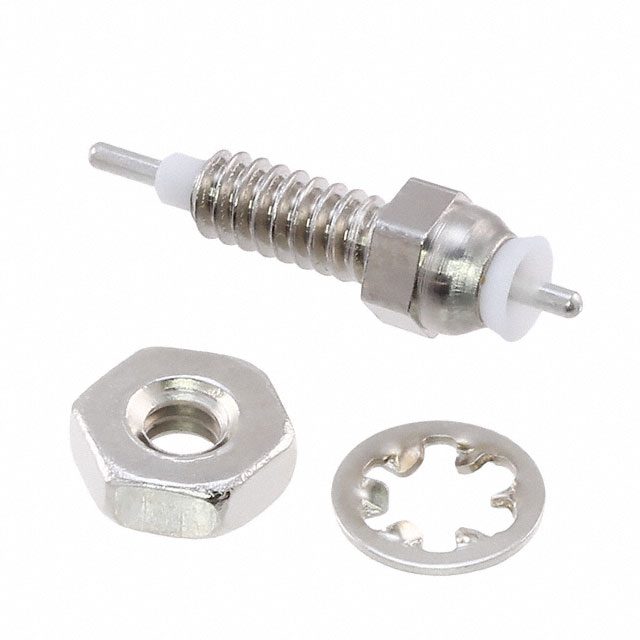

11361

Active

Keystone Electronics

CIRCUIT BOARD HARDWARE - PCB .405 X .250 THRD TERMINAL

Search across all available documentation for this part.

Active

Keystone Electronics

CIRCUIT BOARD HARDWARE - PCB .405 X .250 THRD TERMINAL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	11361	11000 Series

Board Thickness	-	0.062 in
Board Thickness	-	1.57 mm
Color	White	White
Contact Finish	-	Tin
Contact Material	-	Brass
Flange Diameter	-	0.187 in
Flange Diameter	-	4.75 mm
Insulation	-	Insulated
Insulation Color	-	White
Length - Above Board	-	0.39 in
Length - Above Board	-	9.91 mm
Length - Below Flange	-	0.15 in
Length - Below Flange	-	3.81 mm
Length - Overall	-	0.54 in
Length - Overall	-	13.72 mm
Material - Insulation	-	Polytetrafluoroethylene (PTFE)
Mounting Hole Diameter	-	4.01 mm
Mounting Hole Diameter	-	0.158 in
Mounting Type	-	Through Hole
Number of Turrets	-	Single
Terminal Type	Double End, Feed Through	Fork, Single End, Hollow, Double End, Feed Through
Termination	Threaded	Press-Fit, Threaded

Test Plugs & Test Jacks PTFE Test Point Jack BLK ROHS NON-COMP

Part	Contact Material	Insulation	Mounting Type	Contact Finish	Number of Turrets	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Length - Below Flange [x]	Length - Below Flange [x]	Length - Above Board	Length - Above Board	Insulation Color	Board Thickness	Board Thickness	Terminal Type	Length - Overall	Length - Overall	Termination	Flange Diameter [diameter]	Flange Diameter [diameter]	Material - Insulation	Color
Keystone Electronics 11114	Brass	Insulated	Through Hole	Tin	Single	4.01 mm	0.158 in	0.15 in	3.81 mm	0.39 in	9.91 mm	White	0.062 in	1.57 mm	Fork, Hollow, Single End	0.54 in	13.72 mm	Press-Fit	0.187 in	4.75 mm	Polytetrafluoroethylene (PTFE)
Keystone Electronics 11361															Double End, Feed Through			Threaded				White
