LY503ALH
ObsoleteSTMicroelectronics

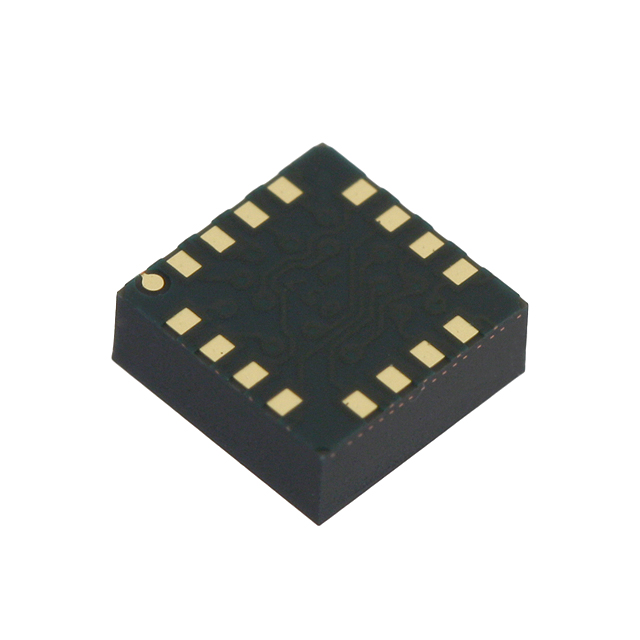

GYROSCOPE SINGLE AXIS 16-LGA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LY503ALH
ObsoleteSTMicroelectronics
GYROSCOPE SINGLE AXIS 16-LGA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LY503ALH |
|---|---|
| Axis | X (Pitch) |
| Bandwidth | 140 Hz |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Analog Voltage |
| Package / Case | 16-LFLGA |
| Range °/s [Max] | 30 |
| Range °/s [Min] | -30 |
| Sensitivity (mV/°/s) | 33.3 mV/°/s |
| Type | Analog |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LY503 Series
Gyroscope X (Pitch) ±30 140Hz Analog Voltage 16-LGA (5x5)
