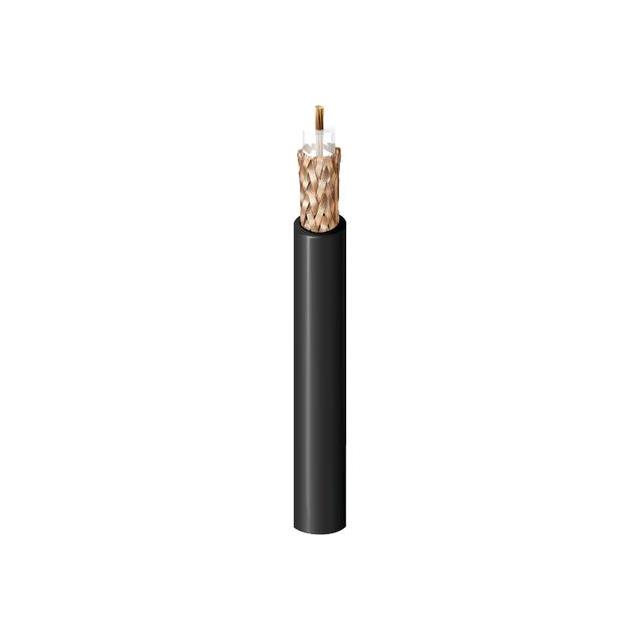

8267 010500

Active

Belden Inc.

50 OHM COAX CABLE

Search across all available documentation for this part.

Active

Belden Inc.

50 OHM COAX CABLE

Technical Specifications

Parameters and characteristics for this part

Specification	8267 010500

Cable Group	RG-213
Cable Type	Coaxial
Conductor Material	Copper, Bare
Conductor Strand	21 AWG, 7 Strands
Dielectric Diameter [diameter]	7.24 mm
Dielectric Diameter [diameter]	0.285 in
Impedance	50 Ohms
Jacket (Insulation) Diameter [diameter]	10.29 mm
Jacket (Insulation) Diameter [diameter]	0.405 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	152.4 m
Length	6000 in
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Shield Coverage	95 %
Shield Material	Copper, Bare
Shield Type	Braid
Usage	RF Signal
Wire Gauge	13 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Cable Type	Shield Material	Jacket Color	Impedance	Usage	Length	Length	Shield Coverage	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Jacket (Insulation) Material	Conductor Strand	Cable Group	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type
Belden Inc. 8267 010500	-40 °C	80 C	Copper Bare	Coaxial	Copper Bare	Black	50 Ohms	RF Signal	152.4 m	6000 in	95 %	7.24 mm	0.285 in	Poly-Vinyl Chloride (PVC)	7 Strands 21 AWG	RG-213	13 AWG	10.29 mm	0.405 in	Braid

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 4.10

General part information

Coaxial Cable 13 AWG RG-213 500.0' (152.40m) 50 Ohms
