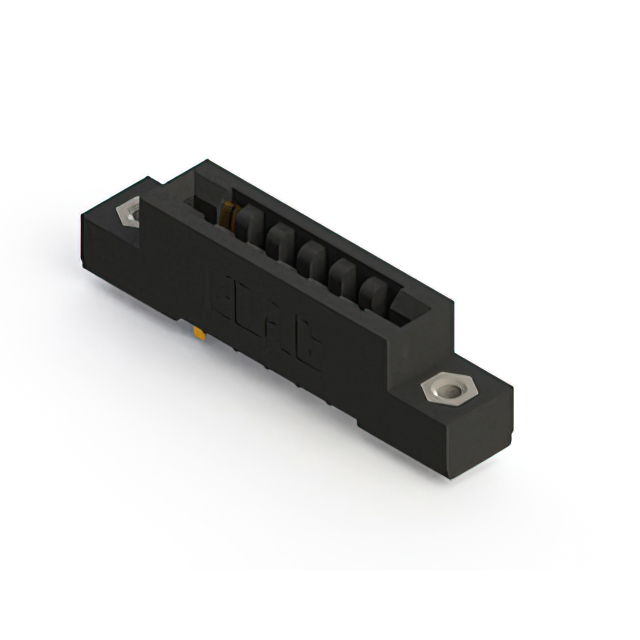

857-012-558-208
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 12POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 857-012-558-208 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 12 |
| Number of Positions/Bay/Row [custom] | 6 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 2 |
857-012 Series
...
| Part | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination | Material - Insulation | Color | Number of Positions | Gender | Read Out | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Pitch [x] | Pitch [x] | Termination Rows | Contact Material | Contact Finish | Number of Positions/Bay/Row [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Number of Rows | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Polyphenylene Sulfide (PPS) | Black | 12 | Female | Single | 10 Áin | 0.25 Ám | Semi Bellows | 0.156 in | 3.96 mm | 1 | Copper Alloy | Gold | 12 | 125 °C | -40 °C | Through Hole | 1 | |
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Polyphenylene Sulfide (PPS) | Black | 12 | Female | Single | 10 Áin | 0.25 Ám | Semi Bellows | 0.156 in | 3.96 mm | 2 | Copper Alloy | Gold | 6 | 125 °C | -40 °C | Through Hole Right Angle | 2 | |||
EDAC Inc. | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Polyphenylene Sulfide (PPS) | Black | 12 | Female | Single | Semi Bellows | 0.156 in | 3.96 mm | 1 | Copper Alloy | Tin | 12 | 125 °C | -40 °C | Through Hole | 1 | ||||||
EDAC Inc. | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Polyphenylene Sulfide (PPS) | Black | 12 | Female | Dual | Semi Bellows | 0.156 in | 3.96 mm | 2 | Copper Alloy | Tin | 6 | 125 °C | -40 °C | Board Edge Straddle Mount | 2 | Card Extender | ||
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Polyphenylene Sulfide (PPS) | Black | 12 | Female | Dual | 10 Áin | 0.25 Ám | Semi Bellows | 0.156 in | 3.96 mm | 2 | Copper Alloy | Gold | 6 | 125 °C | -40 °C | Through Hole | 2 | |||
EDAC Inc. | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Polyphenylene Sulfide (PPS) | Black | 12 | Female | Dual | 10 Áin | 0.25 Ám | Semi Bellows | 0.156 in | 3.96 mm | 2 | Copper Alloy | Gold | 6 | 125 °C | -40 °C | Board Edge Straddle Mount | 2 | Card Extender | ||
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Polyphenylene Sulfide (PPS) | Black | 12 | Female | Single | Semi Bellows | 0.156 in | 3.96 mm | 2 | Copper Alloy | Tin | 6 | 125 °C | -40 °C | Through Hole Right Angle | 2 | |||||
EDAC Inc. | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Polyphenylene Sulfide (PPS) | Black | 12 | Female | Single | 10 Áin | 0.25 Ám | Semi Bellows | 0.156 in | 3.96 mm | 1 | Copper Alloy | Gold | 12 | 125 °C | -40 °C | Through Hole | 1 | |||
EDAC Inc. | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Polyphenylene Sulfide (PPS) | Black | 12 | Female | Single | Semi Bellows | 0.156 in | 3.96 mm | 1 | Copper Alloy | Tin | 12 | 125 °C | -40 °C | Through Hole Right Angle | 1 | ||||||
EDAC Inc. | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Polyphenylene Sulfide (PPS) | Black | 12 | Female | Single | Semi Bellows | 0.156 in | 3.96 mm | 1 | Copper Alloy | Tin | 12 | 125 °C | -40 °C | Through Hole Right Angle | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
857-012 Series
12 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
