2-521129-2
ObsoleteTE Connectivity AMP Connectors
CONN QC RCPT 18-22AWG 0.187
2-521129-2
ObsoleteTE Connectivity AMP Connectors
CONN QC RCPT 18-22AWG 0.187
Description
General part information
521129 Series

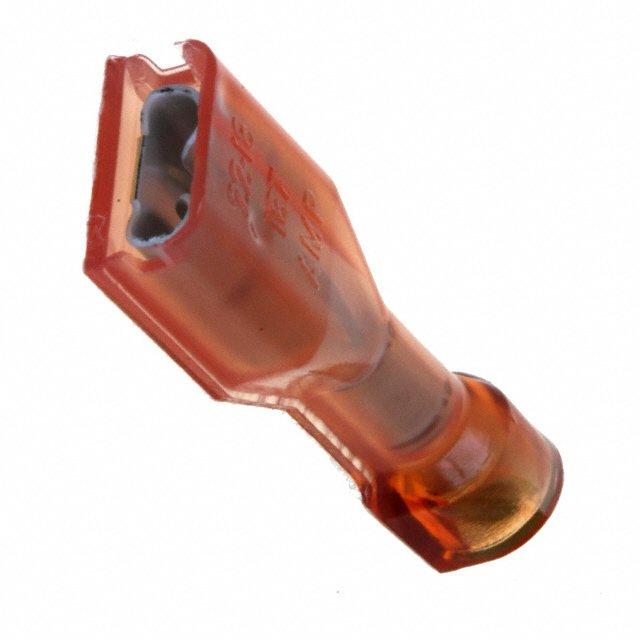

0.187" (4.75mm) Quick Connect Female 18-22 AWG Crimp Connector Fully Insulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-521129-2 |
|---|---|
| Color | Red |
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Fully Insulated |
| Insulation Diameter (Max) | 0.135 in |
| Insulation Diameter (Min) | 0.06 in |
| Length - Overall | 0.855 in |
| Mounting Type | Free Hanging (In-Line) |
| Tab Thickness | 0.032 in |
| Tab Width | 0.187 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 18 AWG |
