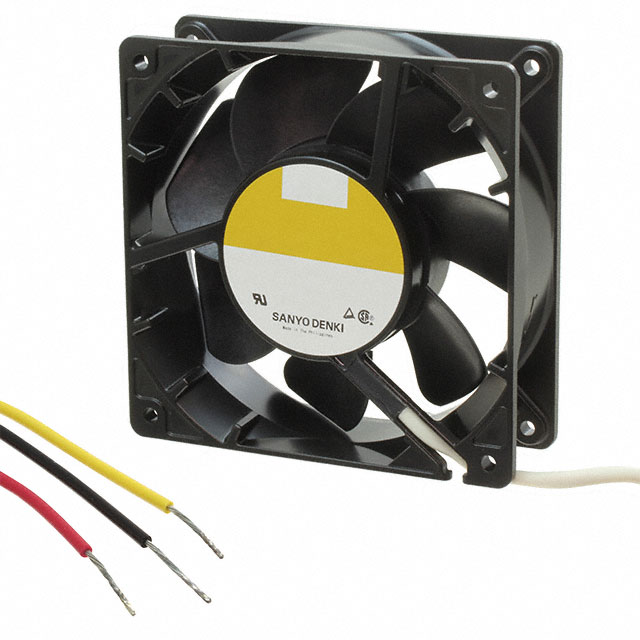

Specification	9WG1212E101-E

Air Flow	118 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating	610 mA
Fan Type	Tubeaxial
Features	Locked Rotor Protection, Speed Sensor (Tach)
Ingress Protection Description	Water Resistant, Dust Protected
Ingress Protection IP Rating	IP55
Lifetime	80000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	46 dB
Operating Temperature (Max)	158 °F
Operating Temperature (Min)	-4 °F
Power (Watts)	7.32 W
RPM	3100 RPM
Size / Dimension Height	120 mm
Size / Dimension Length	120 mm
Size / Dimension Shape	Square
Static Pressure	0.402 in H2O
Termination	3 Wire Leads
Termination Leads Count	3
Termination Type	Wire Leads
Voltage - Rated	12 VAC
Voltage Range (Max)	13.8 VDC
Voltage Range (Min)	10.2 VDC
Weight	0.904 lb
Width	38 mm

9WG1212 Series

Part	Width	Weight	Operating Temperature (Min)	Operating Temperature (Max)	RPM	Power (Watts)	Features	Air Flow	Termination Leads Count	Termination Type	Termination	Bearing Type	Noise	Approval Agency	Static Pressure	Voltage - Rated	Size / Dimension Height	Size / Dimension Shape	Size / Dimension Length	Ingress Protection Description	Ingress Protection IP Rating	Fan Type	Material - Blade	Lifetime	Voltage Range (Max)	Voltage Range (Min)	Material - Frame	Current Rating
Sanyo Denki America Inc. 9WG1212E1D01-E	38 mm	0.904 lb	-4 °F	158 °F	3100 RPM	7.32 W	Locked Rotor Sensor	118 CFM	3	Wire Leads	3 Wire Leads	Ball	46 dB	CSA TUV UL	0.402 in H2O	12 VAC	120 mm	Square	120 mm	Dust Protected Water Resistant	IP55	Tubeaxial	Plastic	80000 Hrs	13.8 VDC	10.2 VDC	Aluminum	610 mA
Sanyo Denki America Inc. 9WG1212H101-E	38 mm	0.904 lb	-4 °F	158 °F	2600 RPM	4.56 W	Locked Rotor Protection Speed Sensor (Tach)	99 CFM	3	Wire Leads	3 Wire Leads	Ball	39 dB	CSA TUV UL	0.283 in H2O	12 VAC	120 mm	Square	120 mm	Dust Protected Water Resistant	IP55	Tubeaxial	Plastic	100000 Hrs	13.8 VDC	7 V	Aluminum	0.38 A
Sanyo Denki America Inc. 9WG1212E101-E	38 mm	0.904 lb	-4 °F	158 °F	3100 RPM	7.32 W	Locked Rotor Protection Speed Sensor (Tach)	118 CFM	3	Wire Leads	3 Wire Leads	Ball	46 dB	CSA TUV UL	0.402 in H2O	12 VAC	120 mm	Square	120 mm	Dust Protected Water Resistant	IP55	Tubeaxial	Plastic	80000 Hrs	13.8 VDC	10.2 VDC	Aluminum	610 mA
Sanyo Denki America Inc. 9WG1212M101-E	38 mm	0.904 lb	-4 °F	158 °F	1950 RPM	2.52 w	Speed Sensor (Tach)	74 CFM	3	Wire Leads	3 Wire Leads	Ball	32 dB	CSA TUV UL	0.159 in H2O	12 VAC	120 mm	Square	120 mm	Dust Protected Water Resistant	IP55	Tubeaxial	Plastic	100000 Hrs	13.8 VDC	7 V	Aluminum	0.21 A
Sanyo Denki America Inc. 9WG1212G102-E	38 mm	0.904 lb	-4 °F	158 °F	3600 RPM	11.76 W	Locked Rotor Protection	137 CFM	2 leads	Wire Leads	2 Wire Leads	Ball	49 dB	CSA TUV UL	0.542 in H2O	12 VAC	120 mm	Square	120 mm	Dust Protected Water Resistant	IP55	Tubeaxial	Plastic	80000 Hrs	13.8 VDC	10.2 VDC	Aluminum	0.98 A
Sanyo Denki America Inc. 9WG1212F101-E	38 mm	0.904 lb	-4 °F	158 °F	2280 RPM	3.36 W	Speed Sensor (Tach)	87 CFM	3	Wire Leads	3 Wire Leads	Ball	36 dB	CSA TUV UL	0.218 in H2O	12 VAC	120 mm	Square	120 mm	Dust Protected Water Resistant	IP55	Tubeaxial	Plastic	100000 Hrs	13.8 VDC	7 V	Aluminum	0.28 A
Sanyo Denki America Inc. 9WG1212F102-E	38 mm	0.904 lb	-4 °F	158 °F	2280 RPM	3.36 W	Locked Rotor Protection	87 CFM	2 leads	Wire Leads	2 Wire Leads	Ball	36 dB	CSA TUV UL	0.218 in H2O	12 VAC	120 mm	Square	120 mm	Dust Protected Water Resistant	IP55	Tubeaxial	Plastic	100000 Hrs	13.8 VDC	7 V	Aluminum	0.28 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Rotor Balancing

Handling Instructions for Fan Motors

Numbering System Splash Proof Fan

Datasheet
