Technical Specifications
Parameters and characteristics for this part
| Specification | M7581-05 |
|---|---|
| Color | Red |
| Contact Finish | Gold |
| Gender | Female Sockets |
| Height [z] | 6 mm |
| Height [z] | 0.236 " |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions or Pins (Grid) [custom] | 1 x 2 |
| Number of Positions or Pins (Grid) [custom] | 2 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Type | Open Top |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M7581 Series

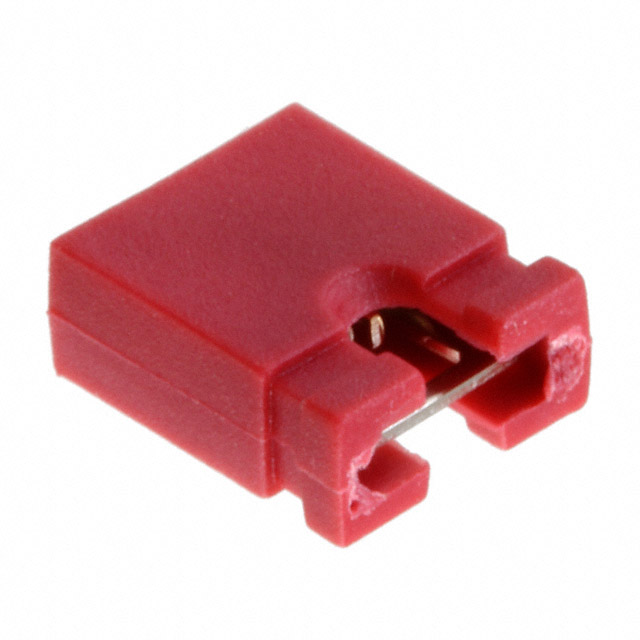

The M7581-05 is a female Jumper Socket with gold-plated contact surface. Consisting of a moulded outer body holding phosphor bronze spring contacts. The component is intended to interconnect two adjacent 0.64mm square section pins on 2.54mm pitch centre.
