031-5493-1010

Active

AMPHENOL RF

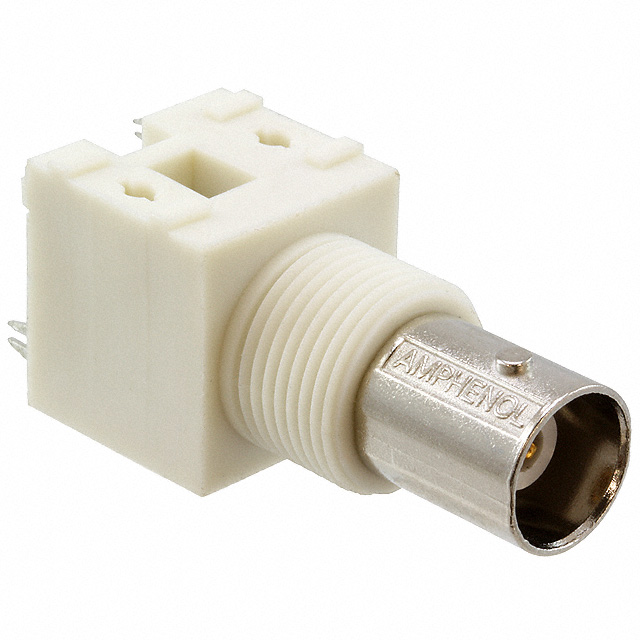

CONN BNC JACK STR 50 OHM PCB

Search across all available documentation for this part.

Active

AMPHENOL RF

CONN BNC JACK STR 50 OHM PCB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole Solder

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	031-5493-1010	031-54 Series

Body Finish	Nickel	Nickel
Body Material	Zinc Die Cast	Zinc Die Cast
Center Contact Material	Phosphor Bronze	Phosphor Bronze
Center Contact Plating	Gold	Gold
Connector Style	BNC	BNC
Connector Type	Female Socket, Jack	Female Socket, Jack
Contact Termination	Solder	Solder
Dielectric Material	Polypropylene (PP)	Polypropylene (PP)
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Board Lock, Isolated	Board Lock, Isolated, Board Guide
Frequency - Max [Max]	1 GHz	1 GHz
Housing Color	White, Silver	White, Silver
Impedance	50 Ohms	50 Ohms
Includes	-	1 Nut, 1 Connector, 1 Lockwasher
Insertion Loss	0.2 dB	0.2 dB
Mating Cycles	500	500
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Ports	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shield Termination	Solder	Solder
Voltage Rating	500 V	500 V

CONN BNC RCPT R/A 50 OHM PCB

Part	Insertion Loss	Mounting Feature	Body Material	Mating Cycles	Connector Type	Frequency - Max [Max]	Features	Center Contact Plating	Housing Color	Includes	Impedance	Contact Termination	Dielectric Material	Number of Ports	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Body Finish	Mounting Type	Connector Style	Shield Termination	Voltage Rating	Center Contact Material
AMPHENOL RF 031-5431-10RFX	0.2 dB	Bulkhead - Front Side Nut	Zinc Die Cast	500	Female Socket, Jack	1 GHz	Board Lock, Isolated	Gold	Silver, White	1 Connector, 1 Lockwasher, 1 Nut	50 Ohms	Solder	Polypropylene (PP)	1	Bayonet Lock	85 °C	-55 °C	Nickel	Panel Mount, Right Angle, Through Hole	BNC	Solder	500 V	Phosphor Bronze
AMPHENOL RF 031-5493-1010	0.2 dB	Bulkhead - Front Side Nut	Zinc Die Cast	500	Female Socket, Jack	1 GHz	Board Lock, Isolated	Gold	Silver, White		50 Ohms	Solder	Polypropylene (PP)	1	Bayonet Lock	85 °C	-55 °C	Nickel	Panel Mount, Through Hole	BNC	Solder	500 V	Phosphor Bronze
AMPHENOL RF 031-5493	0.2 dB	Bulkhead - Front Side Nut	Zinc Die Cast	500	Female Socket, Jack	1 GHz	Board Guide, Isolated	Gold	Silver, White		50 Ohms	Solder	Polypropylene (PP)	1	Bayonet Lock	85 °C	-55 °C	Nickel	Panel Mount, Through Hole	BNC	Solder	500 V	Phosphor Bronze
