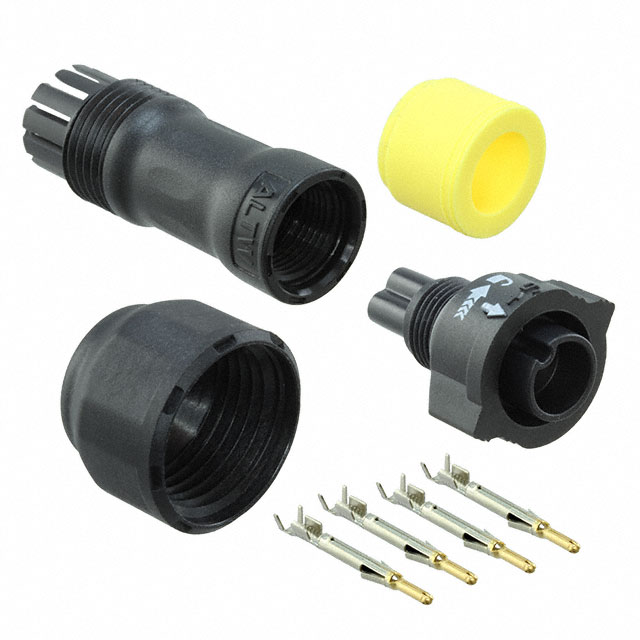

CB-04BFMA-QL8MP0

Active

Amphenol LTW

CONN PLUG MALE 4POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CB-04BFMA-QL8MP0

Active

Amphenol LTW

CONN PLUG MALE 4POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CB-04BFMA-QL8MP0

Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Fastening Type	Push-Pull
Features	Strain Relief, Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	C
Shielding	Unshielded
Termination	Crimp

CB-04BFMA Series

Part	Contact Finish - Mating	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Features	Termination	Current Rating (Amps)	Shielding	Color	Voltage Rating	Orientation	Backshell Material, Plating	Shell Size - Insert	Connector Type	Ingress Protection	Mounting Type	Primary Material	Contact Material	Type	Contact Type	Note	Housing Color	Contact Shape	Material Flammability Rating	Fastening Type	Shell Material	Cable Opening [custom]	Cable Opening [custom]
Amphenol LTW CB-04BFMA-QL8AP0	Gold	4	-40 °C	105 ░C	Thermoplastic	Backshell	Crimp	10 A	Unshielded	Black	300 VDC	Keyed	Thermoplastic	C	Male Pins Plug	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	Plastic	Copper Alloy
Amphenol LTW CB-04BFMA-QL8AN0		4	-40 °C	105 ░C	Thermoplastic	Backshell			Unshielded			Keyed		C	Plug Housing	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	Plastic		For Male Pins	Crimp	Contacts Not Included	Black	Circular
Amphenol LTW CB-04BFMA-QL8LN0		4	-40 °C	105 ░C	Thermoplastic	Backshell			Unshielded			Keyed		C	Plug Housing	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	Plastic		For Male Pins	Crimp	Contacts Not Included	Black	Circular
Amphenol LTW CB-04BFMA-QL8MP0	Gold	4	-20 C	80 C	Polyamide (PA) Nylon Glass Filled	Backshell Strain Relief	Crimp	10 A	Unshielded	Black		Keyed		C	Male Pins Plug	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	Plastic	Copper Alloy						UL94 V-0	Push-Pull	Glass Filled Nylon Polyamide (PA)
Amphenol LTW CB-04BFMA-QL8LP0	Gold	4	-40 °C	105 ░C	Polyamide (PA) Nylon Glass Filled	Backshell	Crimp	10 A	Unshielded	Black	300 VAC	Keyed		C	Male Pins Plug	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	Plastic	Copper Alloy						UL94 V-0	Push-Pull	Glass Filled Nylon Polyamide (PA)	10 mm 12 mm	0.394 in 0.472 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.61
		10	$ 6.88
		25	$ 6.50
		50	$ 6.34
		100	$ 6.03
		250	$ 5.39
		500	$ 5.07
		1000	$ 4.44

Description

General part information

CB-04BFMA Series

4 (Data) Position Circular Connector Plug, Male Pins Crimp
