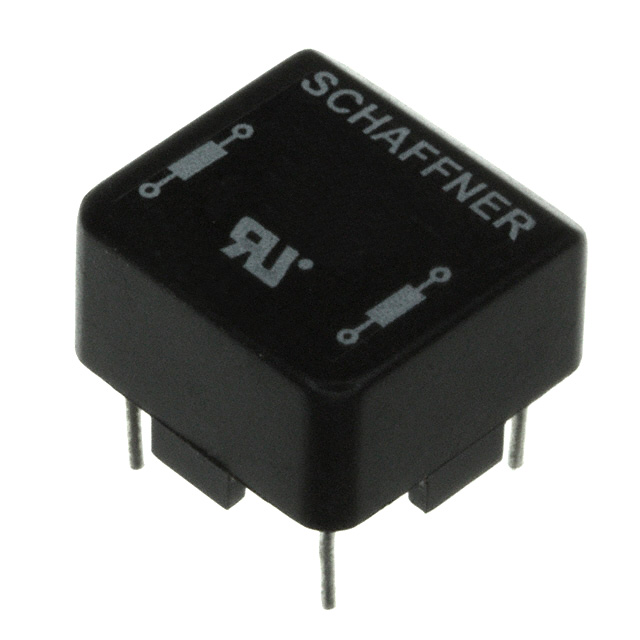

RN102-0.3-02-22M
ActiveTE Connectivity Raychem Cable Protection
CMC 22MH 300MA 2LN TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RN102-0.3-02-22M
ActiveTE Connectivity Raychem Cable Protection
CMC 22MH 300MA 2LN TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RN102-0.3-02-22M |
|---|---|
| Approval Agency | ENEC, UR, VDE |
| Current Rating (Max) [Max] | 300 mA |
| DC Resistance (DCR) (Max) | 1.3 Ohm |
| Filter Type | Power Line |
| Height (Max) [Max] | 9.3 mm |
| Height (Max) [Max] | 0.366 in |
| Inductance @ Frequency | 22 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Horizontal |
| Package / Case | 4 Lead |
| Size / Dimension [custom] | 0.551 " |
| Size / Dimension [custom] | 14 mm |
| Size / Dimension [diameter] | 0.551 in |
| Size / Dimension [diameter] | 14 mm |
| Voltage Rating - AC | 300 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.05 | |
| 10 | $ 1.74 | |||
| 25 | $ 1.60 | |||
| 50 | $ 1.43 | |||
| 100 | $ 1.19 | |||
| 250 | $ 1.16 | |||
| 600 | $ 1.09 | |||
| 1200 | $ 1.02 | |||
| 3000 | $ 1.00 | |||
Description
General part information
RN102 Series
22 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 300mA DCR 1.3Ohm (Typ)
