265103-01-24.00

Active

Amphenol RF

CBL ASSY MMCX PLUG TO PLUG 24"

Search across all available documentation for this part.

Active

Amphenol RF

CBL ASSY MMCX PLUG TO PLUG 24"

Technical Specifications

Parameters and characteristics for this part

Part	2nd Connector	Length	Length	Features	1st Contact Gender	2nd Contact Gender	1st Connector Mounting Type	2nd Connector Mounting Type	Style	1st Connector	Overall Impedance	Cable Type	Cable Impedance	Color	Length
Amphenol RF 265103-08-24.00	MMCX Plug Right Angle	24 "	609.6 mm	Shielded	Male	Male	Free Hanging (In-Line)	Free Hanging (In-Line)	MMCX to MMCX	MMCX Plug	50 Ohms	RG-178	50 Ohms	Copper
Amphenol RF 265103-01-36.00	MMCX Plug Right Angle	36 in	91.44 cm	Shielded	Male	Male	Free Hanging (In-Line)	Free Hanging (In-Line)	MMCX to MMCX	MMCX Plug	50 Ohms	RG-316	50 Ohms	Copper
Amphenol RF 265103-01-24.00	MMCX Plug Right Angle	24 "	609.6 mm	Shielded	Male	Male	Free Hanging (In-Line)	Free Hanging (In-Line)	MMCX to MMCX	MMCX Plug	50 Ohms	RG-316	50 Ohms	Copper
Amphenol RF 265103-01-06.00	MMCX Plug Right Angle	6 in	152.4 mm	Shielded	Male	Male	Free Hanging (In-Line)	Free Hanging (In-Line)	MMCX to MMCX	MMCX Plug	50 Ohms	RG-316	50 Ohms	Copper
Amphenol RF 265103-01-48.00	MMCX Plug Right Angle	48 in	1200 mm	Shielded	Male	Male	Free Hanging (In-Line)	Free Hanging (In-Line)	MMCX to MMCX	MMCX Plug	50 Ohms	RG-316	50 Ohms	Copper	4 ft
Amphenol RF 265103-08-48.00	MMCX Plug Right Angle	48 in	1200 mm	Shielded	Male	Male	Free Hanging (In-Line)	Free Hanging (In-Line)	MMCX to MMCX	MMCX Plug	50 Ohms	RG-178	50 Ohms	Copper	4 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	25	$ 22.81

General part information

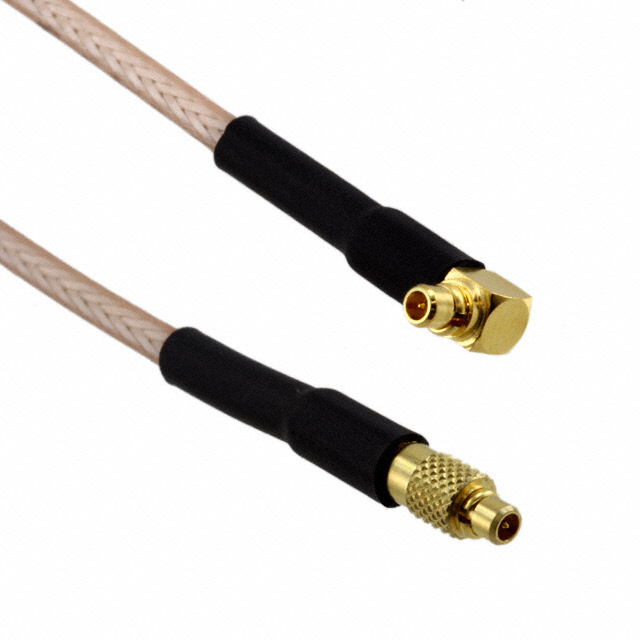

Cable Assembly Coaxial MMCX to MMCX RG-316 24.00" (609.60mm)

Technical documentation and resources

No documents available
