General part information

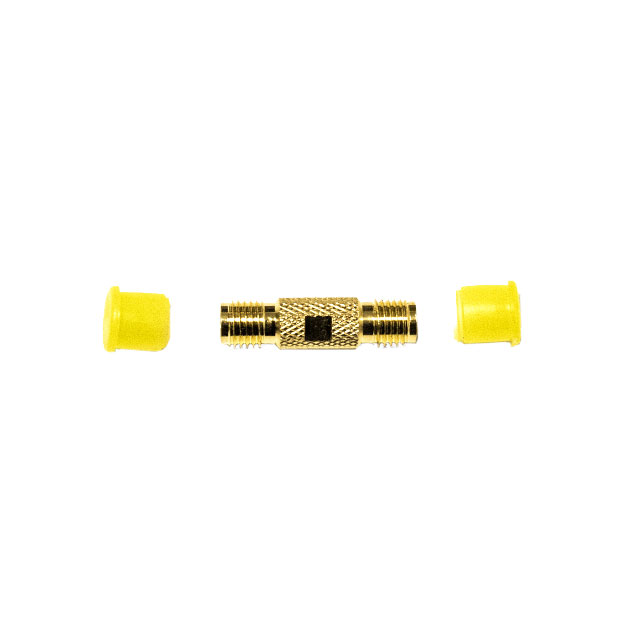

Adapter Coaxial Connector SMA Jack, Female Socket To SMA Jack, Female Socket 50 Ohms

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	BU-P72966	BU-P72 Series

Adapter Series	SMA to SMA	SMA to SMA, SMA to SMB
Adapter Type	Jack to Jack	Jack to Jack, Plug to Jack
Body Finish	Gold	Gold
Body Material	Brass	Brass
Cable Group	-	RG-174, 188, 316
Center Contact Material	Beryllium Copper, Brass	Beryllium Copper, Brass
Center Contact Plating	Gold	Gold
Center Gender	Female to Female	Female to Female
Connector Style	-	SMB
Connector Type	-	Plug, Female Socket
Contact Termination	-	Crimp
Conversion Type	Same Series	Same Series, Between Series
Convert From (Adapter End)	Female Socket, SMA Jack	Female Socket, SMA Jack, SMB Plug
Convert To (Adapter End)	SMA Jack, Female Socket	SMA Jack, Female Socket
Dielectric Material	-	Polytetrafluoroethylene (PTFE)
Fastening Type	-	Snap-On, Threaded
Frequency - Max [Max]	18 GHz	3 - 18 GHz
Housing Color	-	Gold
Impedance	50 Ohms	50 Ohms
Includes	-	1 Connector, 1 Ferrule
Mating Cycles	500	500
Mounting Feature	-	Flange
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	-	1
Operating Temperature	-	-50 °C
Operating Temperature	-	105 - 170 °C
Shield Termination	-	Crimp
Style	Straight	Straight

RF / COAXIAL CONNECTOR, SMB COAXIAL, STRAIGHT PLUG, CRIMP, 50 OHM, RG174, RG188, RG316

Part	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Housing Color	Body Finish	Includes	Fastening Type	Contact Termination	Connector Style	Body Material	Connector Type	Dielectric Material	Mounting Type	Shield Termination	Center Contact Plating	Cable Group	Number of Ports	Impedance	Convert From (Adapter End)	Mating Cycles	Center Gender	Style	Convert To (Adapter End)	Conversion Type	Adapter Type	Adapter Series	Mounting Feature
MUELLER ELECTRIC BU-P72981	Beryllium Copper	-50 °C	170 °C	3 GHz	Gold	Gold	1 Connector, 1 Ferrule	Snap-On	Crimp	SMB	Brass	Female Socket, Plug	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Crimp	Gold	188, 316, RG-174	1	50 Ohms
MUELLER ELECTRIC BU-P72966	Beryllium Copper, Brass			18 GHz		Gold					Brass			Free Hanging (In-Line)		Gold			50 Ohms	Female Socket, SMA Jack	500	Female to Female	Straight	Female Socket, SMA Jack	Same Series	Jack to Jack	SMA to SMA
MUELLER ELECTRIC BU-P72973	Beryllium Copper	-50 °C	105 ░C	18 GHz		Gold					Brass		Polytetrafluoroethylene (PTFE)			Gold			50 Ohms	Female Socket, SMA Jack		Female to Female	Straight	Female Socket, SMA Jack	Same Series	Jack to Jack	SMA to SMA	Flange
MUELLER ELECTRIC BU-P72979				4 GHz		Gold		Snap-On, Threaded			Brass			Free Hanging (In-Line)		Gold			50 Ohms	Female Socket, SMB Plug		Female to Female	Straight	Female Socket, SMA Jack	Between Series	Plug to Jack	SMA to SMB
