KX15-60KLDLE

Active

JAE Electronics

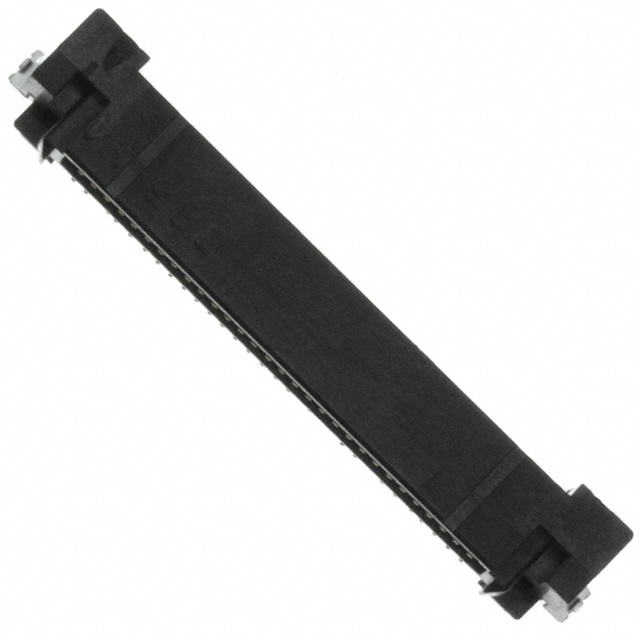

CONN PLUG 60POS R/A SMD GOLD

Search across all available documentation for this part.

Active

JAE Electronics

CONN PLUG 60POS R/A SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	KX15-60KLDLE

Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Solder Retention, Board Guide
Height Above Board	0.226 in
Height Above Board	5.74 mm
Mounting Type	Surface Mount, Right Angle
Number of Positions	60
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Features	Height Above Board	Height Above Board	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Pitch [x]	Pitch [x]	Mated Stacking Heights	Contact Finish	Mounting Type
JAE Electronics KX15-60K2DE	Board Guide Solder Retention	3.75 mm	0.148 in	2	4 Áin	0.1 Ám	60	0.8 mm	0.031 in	4 mm 7 mm 10 mm 13 mm 16 mm	Gold	Surface Mount
JAE Electronics KX15-60KLDLE	Board Guide Solder Retention	5.74 mm	0.226 in	2	4 Áin	0.1 Ám	60	0.8 mm	0.031 in		Gold	Surface Mount Right Angle
JAE Electronics KX15-60K4DE	Board Guide Solder Retention	5.74 mm	0.226 in	2	4 Áin	0.1 Ám	60	0.8 mm	0.031 in	6 mm 9 mm 12 mm 15 mm 18 mm	Gold	Surface Mount
JAE Electronics KX15-60KLDL-E1000E	Board Guide Solder Retention	5.74 mm	0.226 in	2	4 Áin	0.1 Ám	60	0.8 mm	0.031 in		Gold	Surface Mount Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

60 Position Connector Plug, Center Strip Contacts Surface Mount, Right Angle Gold
