BAV99W,LF
ActiveToshiba Semiconductor and Storage
DIODE ARRAY GP 100V 150MA USM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

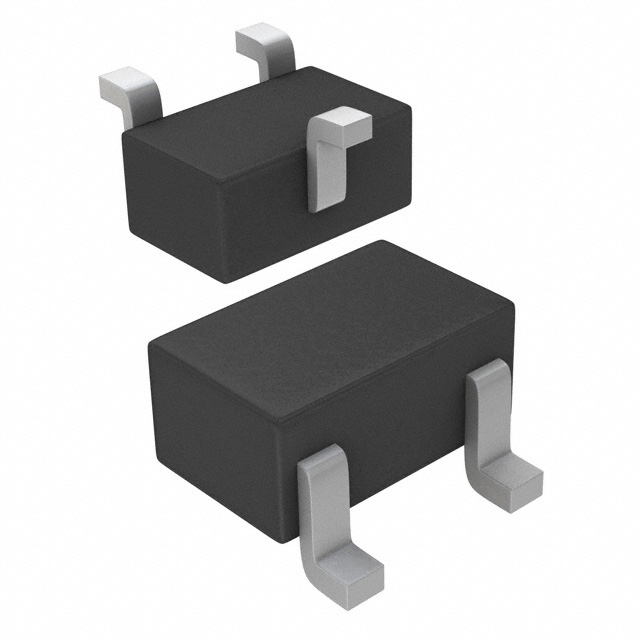

BAV99W,LF
ActiveToshiba Semiconductor and Storage
DIODE ARRAY GP 100V 150MA USM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BAV99W,LF |
|---|---|
| Current - Average Rectified (Io) (per Diode) | 150 mA |
| Diode Configuration | 1 Pair Series Connection |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | 150 °C |
| Package / Case | SC-70, SOT-323 |
| Reverse Recovery Time (trr) | 4 ns |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | USM |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 100 V |
| Voltage - Forward (Vf) (Max) @ If [Max] | 1.25 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.17 | |
| 10 | $ 0.10 | |||
| 100 | $ 0.06 | |||
| 500 | $ 0.05 | |||
| 1000 | $ 0.04 | |||
| Digi-Reel® | 1 | $ 0.17 | ||
| 10 | $ 0.10 | |||
| 100 | $ 0.06 | |||
| 500 | $ 0.05 | |||
| 1000 | $ 0.04 | |||
| Tape & Reel (TR) | 3000 | $ 0.03 | ||
| 6000 | $ 0.03 | |||
| 9000 | $ 0.03 | |||
| 15000 | $ 0.03 | |||
| 21000 | $ 0.03 | |||
| 30000 | $ 0.02 | |||
| 75000 | $ 0.02 | |||
| 150000 | $ 0.02 | |||
| 300000 | $ 0.02 | |||
Description
General part information
BAV99 Series
Diode Array 1 Pair Series Connection 100 V 150mA Surface Mount SC-70, SOT-323
