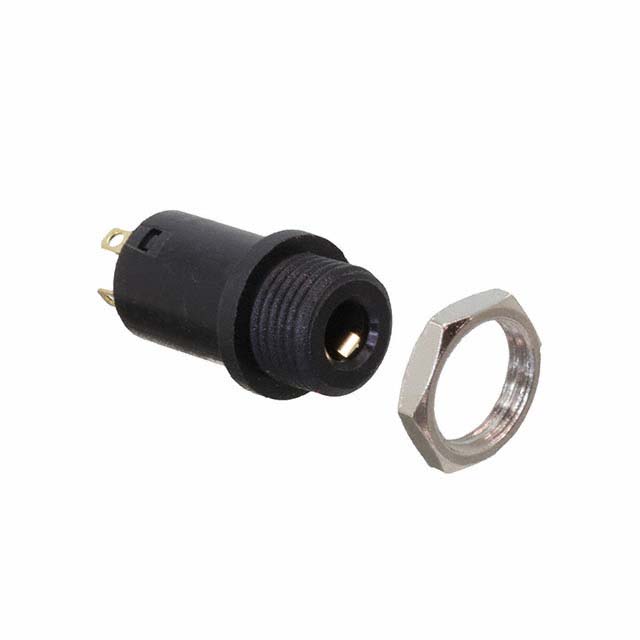

ASJ-165-M-G-HDW-1 - ASJ-165-M-G-HDW-1

ASJ-165-M-G-HDW-1

Active
Adam Tech

AUDIO JACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetECBT2-E224053 Data Connectors, Signal, Control, Power Applications
ASJ-165-M-G-HDW-1 - ASJ-165-M-G-HDW-1

ASJ-165-M-G-HDW-1

Active
Adam Tech

AUDIO JACK

Deep-Dive with AI

DocumentsDatasheetECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Technical Specifications

Parameters and characteristics for this part

SpecificationASJ-165-M-G-HDW-1
Actual Diameter [diameter]0.142 in
Actual Diameter [diameter]3.6 mm
Body ColorBlack
Connector TypePhone Jack
Contact MaterialPhosphor Bronze
Contact Material - Plating [custom]Gold
Current Rating (Amps)0.5 A
FeaturesThread Lock
GenderFemale
IncludesConnector, Washer, Nut
Industry Recognized Mating Diameter0.141 "
Industry Recognized Mating Diameter0.125 "
Industry Recognized Mating Diameter3.5 mm
Insulation ColorBlack
Internal Switch(s)False
Mating Length/Depth0.551 in
Mating Length/Depth14 mm
Mounting TypeThrough Hole, Panel Mount
Number of Positions/Contacts [custom]3
Number of Positions/Contacts [custom]4
Operating Temperature [Max]70 °C
Operating Temperature [Min]-20 C
Panel Hole Size11 mm
Panel Hole Size0.433 in
ShieldingUnshielded
Signal LinesStereo
TerminationSolder Eyelet(s)
Thread SizeM8x0.75
Voltage - Rated30 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBag 1$ 1.31
10$ 1.00
25$ 0.90
50$ 0.83
100$ 0.77
250$ 0.69
500$ 0.64
1000$ 0.60
2500$ 0.54

Description

General part information

ASJ-165 Series

3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder Eyelet(s)
