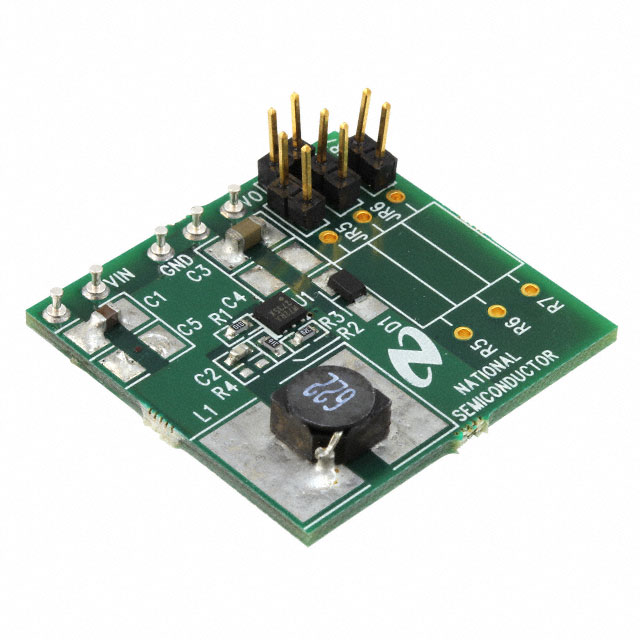

LM2735YSDEVAL

Obsolete

Texas Instruments

BOARD EVAL LM2735 520KHZ 6LLP

Find alt

Alpha

LM2735YSDEVAL

Obsolete

Texas Instruments

BOARD EVAL LM2735 520KHZ 6LLP

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

LM2735 Series

The LM2735-Q1 device is an easy-to-use, space-efficient 2.1-A low-side switch regulator, ideal for boost and SEPIC DC/DC regulation. The device provides all the active functions to provide local DC-DC conversion with fast-transient response and accurate regulation in the smallest PCB area. Switching frequency is internally set to either 520 kHz or 1.6 MHz, allowing the use of extremely small surface mount inductor and chip capacitors, while providing efficiencies of up to 90%. The device can be used as a post-boost, boosting from the main automotive system 3.3V rail to power CAN transceivers and other circuits requiring 5V. The 24V output capability allows the LM2735-Q1 to power audio amplifiers, antenna, power-over-coax (PoC), and automotive audio bus (A2B) devices as well.

Current-mode control and internal compensation provide ease-of-use, minimal component count, and high-performance regulation over a wide range of operating conditions. External shutdown features an ultra-low standby current of 80 nA, ideal for portable applications. Tiny SOT-23 and WSON packages provide space savings. Additional features include internal soft start, circuitry to reduce inrush current, pulse-by-pulse current limit, and thermal shutdown.

Technical Specifications

Parameters and characteristics for this part

Specification	LM2735YSDEVAL

Board Type	Fully Populated
Contents	Board
Current - Output	500 mA
Frequency - Switching	520 kHz
Main Purpose	Step Up, DC/DC
Non-Isolated Output Count	1 count
Output Type	Non-Isolated
Regulator Topology	Boost
Supplied Contents	Board(s)
Total Output Count	1
Utilized IC / Part	LM2735
Voltage - Input (Maximum)	5.5 V
Voltage - Input (Minimum)	3 V
Voltage - Output	12 V

LM2735 Series

520-kHz, 1.6-MHz space efficient boost and SEPIC DC/DC regulator, AEC-Q100 qualified

Part	Current - Output	Function	Voltage - Output (Max)	Topology	Output Configuration	Voltage - Output (Min/Fixed)	Frequency - Switching	Number of Outputs	Voltage - Input (Min)	Voltage - Input (Max)	Package Name	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Output Type	Package Length	Package Width	Synchronous Rectifier	Grade	Qualification	Total Output Count	Non-Isolated Output Count	Supplied Contents	Board Type	Main Purpose	Contents	Regulator Topology	Utilized IC / Part	Voltage - Input (Minimum)	Voltage - Input (Maximum)	Voltage - Output	Package / Case
Texas Instruments LM2735YMY/NOPB	2.1 A	Step-Up Step-Up/Step-Down	24 V	Boost Flyback SEPIC	Positive	3 V	520 kHz	1	2.7 V	5.5 V	8-HVSSOP 8-MSOP 8-PowerTSSOP	Surface Mount	125 °C	-40 °C	Adjustable	0.118 in	3 mm	No
Texas Instruments LM2735XQMFX/NOPB	2.1 A	Step-Up Step-Up/Step-Down	24 V	Boost Flyback SEPIC	Positive	3 V	1.6 MHz	1	2.7 V	5.5 V	SOT-23-5	Surface Mount	125 °C	-40 °C	Adjustable			No	Automotive	AEC-Q100
Texas Instruments LM2735XQMF/NOPB	2.1 A	Step-Up Step-Up/Step-Down	24 V	Boost Flyback SEPIC	Positive	3 V	1.6 MHz	1	2.7 V	5.5 V	SOT-23-5	Surface Mount	125 °C	-40 °C	Adjustable			No	Automotive	AEC-Q100
Texas Instruments LM2735SD3.3EVAL	500 mA						1.6 MHz								Non-Isolated						1	1 count	Board(s)	Fully Populated	DC/DC Step Up	Board	Boost	LM2735	3 V	5.5 V	3.3 V
Texas Instruments LM2735XSDX/NOPB	2.1 A	Step-Up Step-Up/Step-Down	24 V	Boost Flyback SEPIC	Positive	3 V	1.6 MHz	1	2.7 V	5.5 V	6-WSON	Surface Mount	125 °C	-40 °C	Adjustable	3 mm	3 mm	No														6-WDFN Exposed Pad
Texas Instruments LM2735YQSD/NOPB	2.1 A	Step-Up Step-Up/Step-Down	24 V	Boost Flyback SEPIC	Positive	3 V	520 kHz	1	2.7 V	5.5 V	6-WSON	Surface Mount	125 °C	-40 °C	Adjustable	3 mm	3 mm	No	Automotive	AEC-Q100												6-WDFN Exposed Pad
Texas Instruments LM2735YSD/NOPB	2.1 A	Step-Up Step-Up/Step-Down	24 V	Boost Flyback SEPIC	Positive	3 V	520 kHz	1	2.7 V	5.5 V	6-WSON	Surface Mount	125 °C	-40 °C	Adjustable	3 mm	3 mm	No														6-WDFN Exposed Pad
Texas Instruments LM2735YQMF/NOPB	2.1 A	Step-Up Step-Up/Step-Down	24 V	Boost Flyback SEPIC	Positive	3 V	520 kHz	1	2.7 V	5.5 V	SOT-23-5	Surface Mount	125 °C	-40 °C	Adjustable			No	Automotive	AEC-Q100
Texas Instruments LM2735XMF/NOPB	2.1 A	Step-Up Step-Up/Step-Down	24 V	Boost Flyback SEPIC	Positive	3 V	1.6 MHz	1	2.7 V	5.5 V	SOT-23-5	Surface Mount	125 °C	-40 °C	Adjustable			No
Texas Instruments LM2735XSDEVAL	500 mA						1.6 MHz								Non-Isolated						1	1 count	Board(s)	Fully Populated	DC/DC Step Up	Board	Boost	LM2735	3 V	5.5 V	12 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

LM2735YSDEVAL | Datasheet
