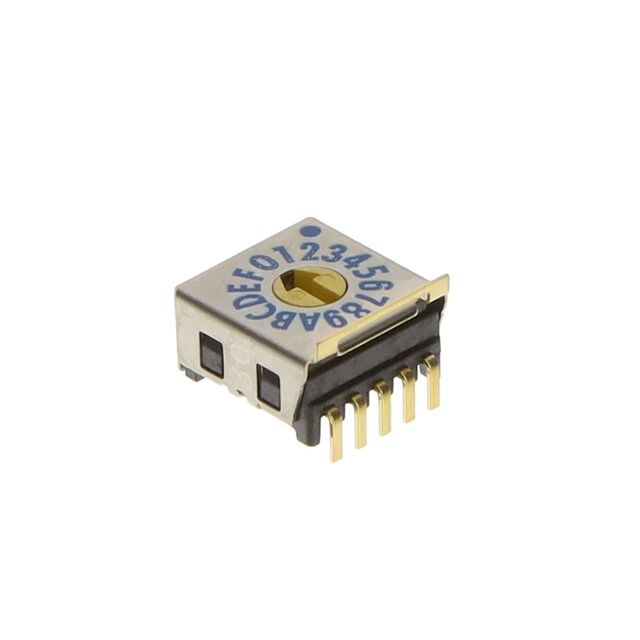

SMRR7016C-1E
ActiveNidec Components Corporation
SWITCH ROTARY DIP HEX 0.03A 15V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SMRR7016C-1E
ActiveNidec Components Corporation
SWITCH ROTARY DIP HEX 0.03A 15V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SMRR7016C-1E |
|---|---|
| Actuator Level | Flush, Recessed |
| Actuator Type | Rotary for Tool |
| Circuit | Hexadecimal |
| Contact Finish | Gold |
| Current Rating (Amps) | 30 mA |
| Electrical Life | 10000 Cycles |
| Height Above Board | 0.319 in |
| Height Above Board | 8.1 mm |
| Length [x] | 7.5 mm |
| Length [x] | 0.295 in |
| Mechanical Life | 10000 Steps |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 16 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch | Full |
| Pitch [x] | 0.1 in |
| Pitch [x] | 2.54 mm |
| Termination Style | Gull Wing |
| Voltage Rating | 15 VDC |
| Washable | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.47 | |
| 10 | $ 3.32 | |||
| 25 | $ 3.03 | |||
| 100 | $ 2.63 | |||
| 250 | $ 2.38 | |||
| Digi-Reel® | 1 | $ 3.47 | ||
| 10 | $ 3.32 | |||
| 25 | $ 3.03 | |||
| 100 | $ 2.63 | |||
| 250 | $ 2.38 | |||
| Tape & Reel (TR) | 500 | $ 2.21 | ||
| 1000 | $ 2.05 | |||
| 2500 | $ 1.86 | |||
| 5000 | $ 1.79 | |||
Description
General part information
SMRR7016C Series
Dip Switch Hexadecimal 16 Position Surface Mount, Right Angle Rotary for Tool Actuator 30mA 15VDC
