SCP8PT78HPL1PLS06E

Obsolete

Samsung Semiconductor, Inc.

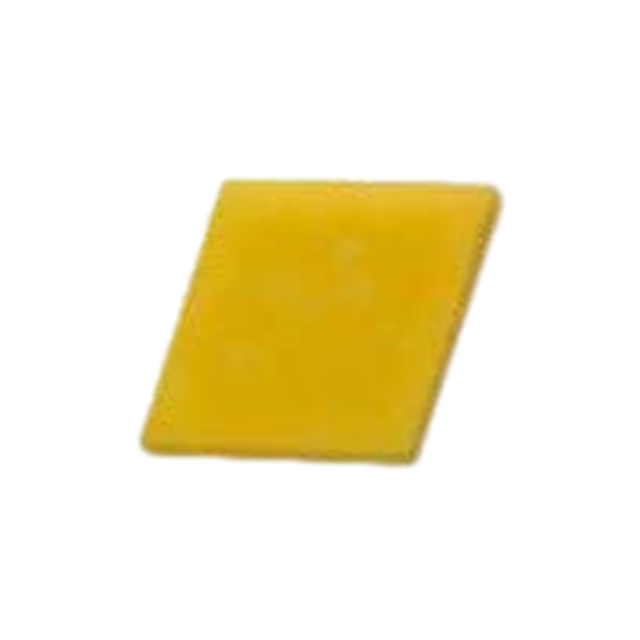

LED LM101A COOL WHITE 6500K SMD

Search across all available documentation for this part.

Obsolete

Samsung Semiconductor, Inc.

LED LM101A COOL WHITE 6500K SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

LED LM101A COOL WHITE 6500K SMD

Part	Flux @ 85°C, Current - Test	Flux @ 85°C, Current - Test [Max]	Flux @ 85°C, Current - Test [Min]	Package / Case	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	CCT (K)	Supplier Device Package	Mounting Type	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Color	Voltage - Forward (Vf) (Typ)	Viewing Angle	Lumens/Watt @ Current - Test	CRI (Color Rendering Index)	Current - Test	Height - Seated (Max) [Max] [z]
Samsung Semiconductor, Inc. SCP8PT78HPL1PUS06E	57 lm	63 lm	51 lm	0505	1313 Metric	0.045 "	1.15 mm	1.15 mm	0.045 in	6500 K	SMD	Surface Mount	0.45 mm	0.018 "	Cool, White	2.9 V	150 °	131 lm/W	80	150 mA
Samsung Semiconductor, Inc. SCP8PT78HPL1PLS06E	57 lm	63 lm	51 lm	0505	1313 Metric	0.046 in	1.18 mm	1.18 mm	0.046 in	6500 K	SMD	Surface Mount		0.017 in	Cool, White	2.9 V	150 °	131 lm/W	80	150 mA	0.42 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting LM101A White, Cool 6500K 5-Step MacAdam Ellipse 2.9V 150mA 150° 0505 (1313 Metric)
