8740 060U500

Active

Belden Inc.

CABLE 2COND 22AWG CHROME

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 22AWG CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	8740 060U500

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand	Solid
Jacket (Insulation) Diameter [diameter]	0.156 in
Jacket (Insulation) Diameter [diameter]	3.96 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Audio, Instrumentation, Control
Wire Gauge	22 AWG

Part	Number of Conductors	Conductor Material	Cable Type	Wire Gauge	Length [x]	Length [x]	Conductor Insulation	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand	Usage	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]
Belden Inc. 8740 060U500	2	Copper Tinned	Multi-Conductor	22 AWG	500 '	152.4 m	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	0.156 in	3.96 mm	Solid	Audio Control Instrumentation	Chrome	-20 C	80 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 0.84

General part information

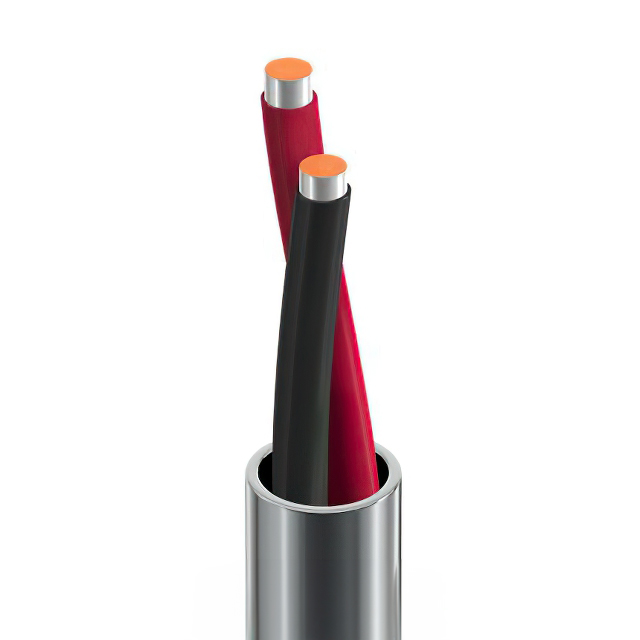

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Chrome 22 AWG 500.0' (152.4m)

Technical documentation and resources
