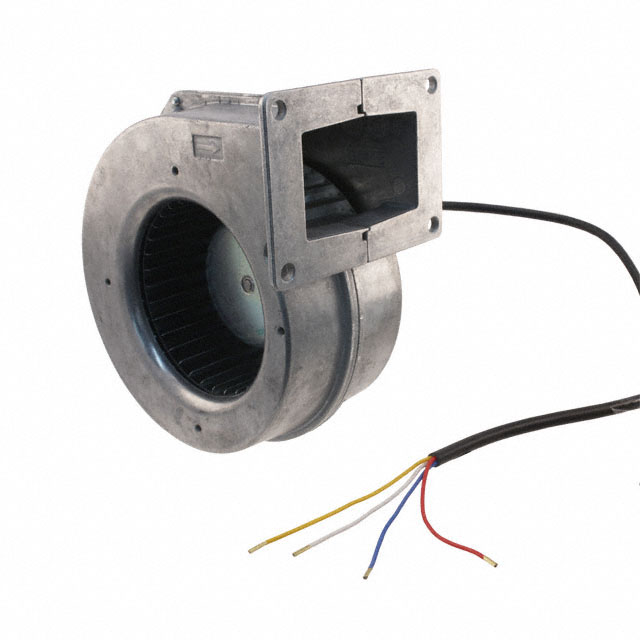

G1G146-BA07-52

Active

ebm-papst Inc.

FAN BLOWER 226.8X130.0MM 24VDC

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN BLOWER 226.8X130.0MM 24VDC

Technical Specifications

Parameters and characteristics for this part

Specification	G1G146-BA07-52

Approval Agency	CSA, UL
Bearing Type	Ball
Current Rating (Amps)	5 A
Fan Type	Blower
Features	Speed Sensor (Tach), PWM Control
Ingress Protection	IP42
Material - Blade	Steel
Material - Frame	Aluminum
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	100 W
RPM	2200 RPM
Size / Dimension [diameter]	158 mm
Size / Dimension [x]	226.8 mm
Size / Dimension [y]	262 mm
Termination	4 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	28 VDC
Voltage Range [Min]	16 VDC
Weight	6.2 lbs
Weight	2.8 kg
Width [y]	130 mm

Part	Features	Ingress Protection	Bearing Type	Voltage - Rated	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	RPM	Fan Type	Power (Watts)	Material - Frame	Approval Agency	Current Rating (Amps)	Termination	Weight	Weight	Size / Dimension [y]	Size / Dimension [diameter]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Width [y]
ebm-papst Inc. G1G146-BA07-52	PWM Control Speed Sensor (Tach)	IP42	Ball	24 VDC	16 VDC	28 VDC	Steel	2200 RPM	Blower	100 W	Aluminum	CSA UL	5 A	4 Wire Leads	6.2 lbs	2.8 kg	262 mm	158 mm	226.8 mm	-25 °C	60 °C	130 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower 24VDC Rectangular/Rounded - 226.8mm L x 262mm H (158mm Dia) Ball 4 Wire Leads
