25096 BK199

Active

ALPHA WIRE

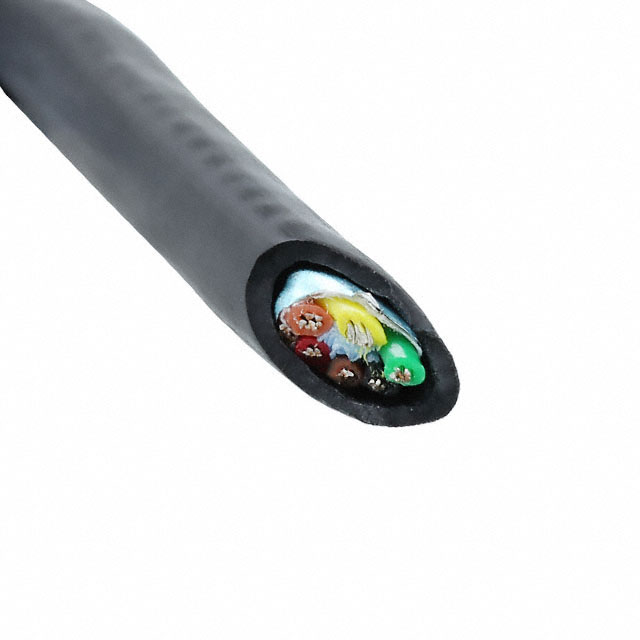

CABLE 6COND 24AWG BLK SHLD FEET

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 6COND 24AWG BLK SHLD FEET

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	25096 BK199	25096 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	32 AWG	32 AWG
Conductor Strand [custom]	7	7
Features	Rip Cord, Biological Compatibility, Drain Wire	Rip Cord, Biological Compatibility, Drain Wire
Jacket (Insulation) Diameter [diameter]	0.205 in	0.205 in
Jacket (Insulation) Diameter [diameter]	5.21 mm	5.21 mm
Jacket (Insulation) Material	Polyurethane (PU)	Polyurethane (PU)
Jacket Color	Black	Black, Slate
Length	Enter Number of Feet in Order Quantity	Enter Number of Feet in Order Quantity
Length	-	1000 ft
Length	-	304.8 m
Length	-	30.5 m
Length	-	100 ft
Number of Conductors	6	6
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Ratings	UL Style 20668, ISO 10993	UL Style 20668, ISO 10993
Shield Coverage	-	100 %
Shield Material	Aluminum	Aluminum
Shield Type	Foil	Foil
Spool Size	1000 ft	1000 ft
Spool Size	304.8 m	304.8 m
Usage	Control, Communication	Control, Communication
Voltage	-	300 V
Wire Gauge	24 AWG	24 AWG

CABLE 6COND 24AWG BLK SHLD FEET

Part	Conductor Insulation	Conductor Material	Spool Size	Spool Size	Conductor Strand [custom]	Conductor Strand [custom]	Shield Type	Jacket Color	Cable Type	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Ratings	Usage	Number of Conductors	Operating Temperature [Min]	Operating Temperature [Max]	Shield Material	Length	Jacket (Insulation) Material	Wire Gauge	Shield Coverage	Voltage	Length	Length	Length [x]	Length [x]
ALPHA WIRE 25096 BK199	Poly-Vinyl Chloride (PVC)	Copper, Tinned	1000 ft	304.8 m	32 AWG	7	Foil	Black	Multi-Conductor	Biological Compatibility, Drain Wire, Rip Cord	0.205 in	5.21 mm	ISO 10993, UL Style 20668	Communication, Control	6	-30 ░C	90 °C	Aluminum	Enter Number of Feet in Order Quantity	Polyurethane (PU)	24 AWG
ALPHA WIRE 25096 SL199	Poly-Vinyl Chloride (PVC)	Copper, Tinned			32 AWG	7	Foil	Slate	Multi-Conductor	Biological Compatibility, Drain Wire, Rip Cord	0.205 in	5.21 mm	ISO 10993, UL Style 20668		6	-30 ░C	90 °C	Aluminum		Polyurethane (PU)	24 AWG	100 %	300 V	1000 ft	304.8 m
ALPHA WIRE 25096 BK005	Poly-Vinyl Chloride (PVC)	Copper, Tinned			32 AWG	7	Foil	Black	Multi-Conductor	Biological Compatibility, Drain Wire, Rip Cord	0.205 in	5.21 mm	ISO 10993, UL Style 20668		6	-30 ░C	90 °C	Aluminum		Polyurethane (PU)	24 AWG	100 %	300 V			30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Conductor Multi-Conductor Cable Black 24 AWG Foil Enter Number of Feet in Order Quantity
