5280-8PG-530

Active

Conxall/Switchcraft

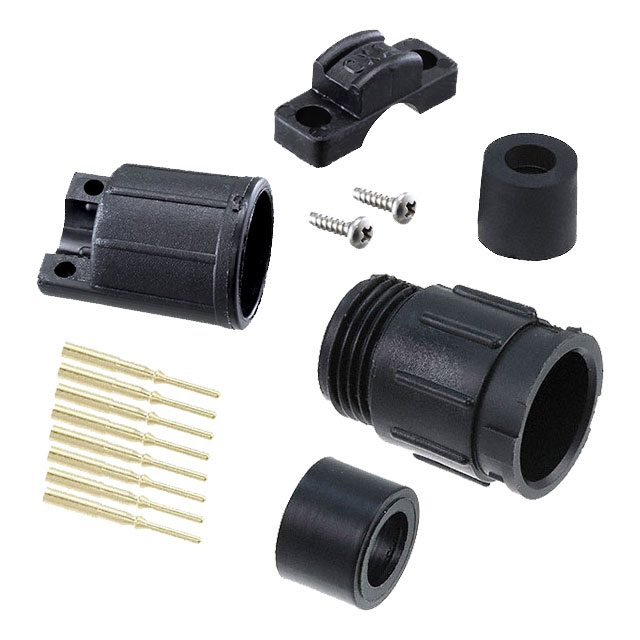

CONN RCPT MALE 8POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5280-8PG-530

Active

Conxall/Switchcraft

CONN RCPT MALE 8POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 9.72

Description

General part information

5280-8PG Series

8 Position Circular Connector Receptacle, Male Pins Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	5280-8PG-530	5280-8PG Series

Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	4.57 mm
Cable Opening	-	0.18 in
Cable Opening	-	0.2 in
Cable Opening	-	5.08 mm
Cable Opening	-	5.84 - 7.37 mm
Cable Opening	-	0.15 - 0.17 in
Cable Opening	-	3.81 - 4.32 mm
Cable Opening [Max] [diameter]	0.32 in	0.23 - 0.32 in
Cable Opening [Max] [diameter]	8.13 mm	8.13 mm
Cable Opening [Min] [diameter]	7.62 mm	5.33 - 7.62 mm
Cable Opening [Min] [diameter]	0.3 in	0.21 - 0.3 in
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	5.6 A	5.6 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Cable Clamp, Backshell	Backshell, Cable Clamp
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	8	8
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 V	600 V

5280-8PG Series

CONN RCPT MALE 8POS GOLD CRIMP

Part	Contact Material	Orientation	Shielding	Color	Fastening Type	Contact Finish - Mating	Current Rating (Amps)	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Backshell Material, Plating	Voltage Rating	Mounting Type	Ingress Protection	Termination	Features	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Connector Type	Primary Material	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft 5280-8PG-318	Brass	Keyed	Unshielded	Black	Bayonet Lock	Gold	5.6 A	4.57 mm	0.18 in	0.2 in	5.08 mm	Nylon, Polyamide (PA)	600 V	Free Hanging (In-Line)	Weathertight	Crimp	Backshell	-40 °C	115 °C	8	Male Pins, Receptacle	Plastic
Conxall/Switchcraft 5280-8PG-321	Brass	Keyed	Unshielded	Black	Bayonet Lock	Gold	5.6 A					Nylon, Polyamide (PA)	600 V	Free Hanging (In-Line)	Weathertight	Crimp	Backshell	-40 °C	115 °C	8	Male Pins, Receptacle	Plastic	5.33 mm	5.84 mm	0.21 in	0.23 in
Conxall/Switchcraft 5280-8PG-530	Brass	Keyed	Unshielded	Black	Bayonet Lock	Gold	5.6 A					Nylon, Polyamide (PA)	600 V	Free Hanging (In-Line)	Weathertight	Crimp	Backshell, Cable Clamp	-40 °C	115 °C	8	Male Pins, Receptacle	Plastic	7.62 mm		0.3 in	0.32 in	8.13 mm
Conxall/Switchcraft 5280-8PG-330	Brass	Keyed	Unshielded	Black	Bayonet Lock	Gold	5.6 A					Nylon, Polyamide (PA)	600 V	Free Hanging (In-Line)	Weathertight	Crimp	Backshell	-40 °C	115 °C	8	Male Pins, Receptacle	Plastic	7.62 mm		0.3 in	0.32 in	8.13 mm
Conxall/Switchcraft 5280-8PG-315	Brass	Keyed	Unshielded	Black	Bayonet Lock	Gold	5.6 A					Nylon, Polyamide (PA)	600 V	Free Hanging (In-Line)	Weathertight	Crimp	Backshell	-40 °C	115 °C	8	Male Pins, Receptacle	Plastic						0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 5280-8PG-324	Brass	Keyed	Unshielded	Black	Bayonet Lock	Gold	5.6 A					Nylon, Polyamide (PA)	600 V	Free Hanging (In-Line)	Weathertight	Crimp	Backshell	-40 °C	115 °C	8	Male Pins, Receptacle	Plastic	6.1 mm	6.86 mm	0.24 in	0.27 in
Conxall/Switchcraft 5280-8PG-328	Brass	Keyed	Unshielded	Black	Bayonet Lock	Gold	5.6 A					Nylon, Polyamide (PA)	600 V	Free Hanging (In-Line)	Weathertight	Crimp	Backshell	-40 °C	115 °C	8	Male Pins, Receptacle	Plastic	7.11 mm	7.37 mm	0.28 in	0.29 in
