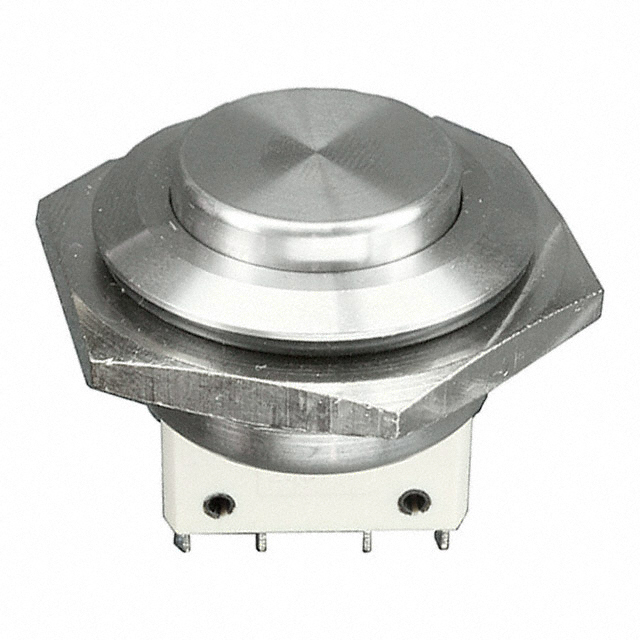

MP0038/2

Active

BULGIN LIMITED

SWITCH, SPNO, SPNC, ANTI-VANDAL

Search across all available documentation for this part.

Active

BULGIN LIMITED

SWITCH, SPNO, SPNC, ANTI-VANDAL

Technical Specifications

Parameters and characteristics for this part

Specification	MP0038/2

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	DPST-NO/NC
Color - Actuator/Cap	Silver
Current Rating (Amps)	2 A, 5 A
Electrical Life	35000 Cycles
Ingress Protection	IP66
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	25.8 mm
Switch Function	Off-Mom, On-Mom
Termination Style	Solder Lug
Type	Anti-Vandal
Voltage Rating - AC	250 V
Voltage Rating - DC	28 V

Part	Mechanical Life	Voltage Rating - DC	Circuit	Current Rating (Amps)	Actuator Type	Mounting Type	Ingress Protection	Electrical Life	Type	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap	Switch Function	Actuator Marking	Voltage Rating - AC
BULGIN LIMITED MP0038/2	1000000 Cycles	28 V	DPST-NO/NC	2 A 5 A	Button Round	Panel Mount Front	IP66	35000 Cycles	Anti-Vandal	Solder Lug	-20 C	70 °C	25.8 mm	Silver	Off-Mom On-Mom	No Marking	250 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPST-NO/NC Anti-Vandal Panel Mount, Front
