SFV4R-2STE1HLF
ActiveAmphenol ICC (FCI)

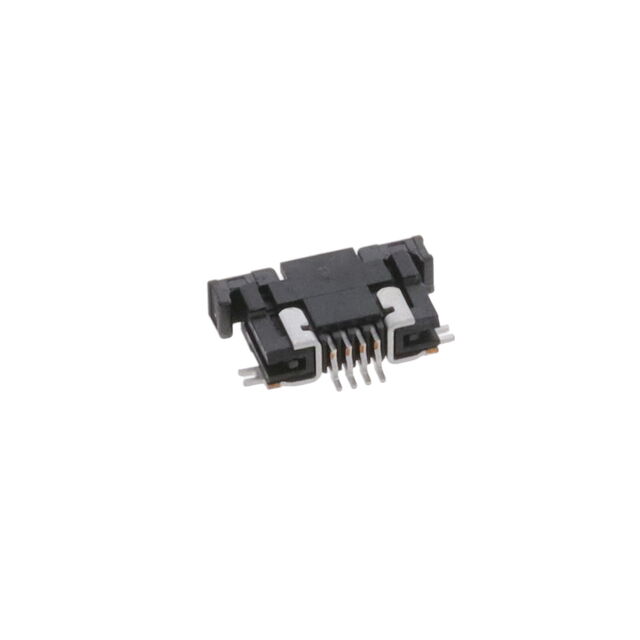

CONN FFC FPC TOP 4POS 0.5MM R/A
Deep-Dive with AI
Search across all available documentation for this part.
SFV4R-2STE1HLF
ActiveAmphenol ICC (FCI)
CONN FFC FPC TOP 4POS 0.5MM R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SFV4R-2STE1HLF |
|---|---|
| Actuator Color | Brown |
| Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free |
| Cable End Type | Notched |
| Connector/Contact Type | Contacts, Top |
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 0.5 A |
| FFC, FCB Thickness [z] | 0.33 mm, 0.3 mm |
| Flat Flex Type | FPC, FFC |
| Height Above Board | 1.8 mm |
| Height Above Board | 0.071 in |
| Housing Color | Black |
| Housing Material | Polyamide (PA), Nylon, Glass Filled, Halogen Free |
| Locking Feature | Slide Lock |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 4 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
| Termination | Solder |
| Voltage Rating | 50 V |
SFV4R Series
| Part | FFC, FCB Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Mating Cycles | Flat Flex Type | Number of Positions | Current Rating (Amps) | Contact Material | Connector/Contact Type | Pitch [x] | Pitch [x] | Locking Feature | Housing Color | Actuator Color | Actuator Material | Voltage Rating | Contact Finish | Height Above Board | Height Above Board | Features | Material Flammability Rating | Housing Material | Termination | Mounting Type | Cable End Type | FFC, FCB Thickness [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | 0.3 mm | 105 ░C | -55 °C | 20 | FFC FPC | 4 | 0.5 A | Phosphor Bronze | Contacts Bottom | 0.5 mm | 0.02 in | Slide Lock | Black | Black | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 50 V | Tin | 1.8 mm | 0.071 in | Solder Retention Zero Insertion Force (ZIF) | UL94 V-0 | Polyamide (PA) Nylon Glass Filled Halogen Free | Solder | Surface Mount Right Angle | Straight | |
Amphenol ICC (FCI) | 105 ░C | -55 °C | 20 | FFC FPC | 4 | 0.5 A | Phosphor Bronze | Contacts Top | 0.5 mm | 0.02 in | Slide Lock | Black | Black | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 50 V | Gold | 1.8 mm | 0.071 in | UL94 V-0 | Polyamide (PA) Nylon Glass Filled Halogen Free | Solder | Surface Mount Right Angle | Straight Tapered | 0.3 mm 0.33 mm | ||
Amphenol ICC (FCI) | 105 ░C | -55 °C | 20 | FFC FPC | 4 | 0.5 A | Phosphor Bronze | Contacts Top | 0.5 mm | 0.02 in | Slide Lock | Black | Brown | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 50 V | Tin | 1.8 mm | 0.071 in | UL94 V-0 | Polyamide (PA) Nylon Glass Filled Halogen Free | Solder | Surface Mount Right Angle | Notched | 0.3 mm 0.33 mm | ||
Amphenol ICC (FCI) | 4 | Contacts Top | 0.5 mm | 0.02 in | Slide Lock | Solder | Surface Mount Right Angle | |||||||||||||||||||
Amphenol ICC (FCI) | 105 ░C | -55 °C | 20 | FPC | 4 | 0.5 A | Phosphor Bronze | Contacts Top | 0.5 mm | 0.02 in | Slide Lock | Black | Brown | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 50 V | Gold | 1.8 mm | 0.071 in | UL94 V-0 | Polyamide (PA) Nylon Glass Filled Halogen Free | Solder | Surface Mount Right Angle | Notched | 0.3 mm 0.33 mm | ||
Amphenol ICC (FCI) | 0.3 mm | 105 ░C | -55 °C | 20 | FPC | 4 | 0.5 A | Phosphor Bronze | Contacts Bottom | 0.5 mm | 0.02 in | Slide Lock | Black | Beige | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 50 V | Gold | 1.8 mm | 0.071 in | UL94 V-0 | Polyamide (PA) Nylon Glass Filled Halogen Free | Solder | Surface Mount Right Angle | Tapered | ||
Amphenol ICC (FCI) | 105 ░C | -55 °C | FFC FPC | 4 | 0.5 A | Phosphor Bronze | Contacts Bottom | 0.5 mm | 0.02 in | Slide Lock | Black | Brown | Polyphenylene Sulfide (PPS) Glass Filled | 50 V | Tin | 1.8 mm | 0.071 in | Solder Retention Zero Insertion Force (ZIF) | UL94 V-0 | Polyamide (PA) Nylon Glass Filled | Solder | Surface Mount Right Angle | Straight Tapered | 0.3 mm 0.33 mm | ||
Amphenol ICC (FCI) |
