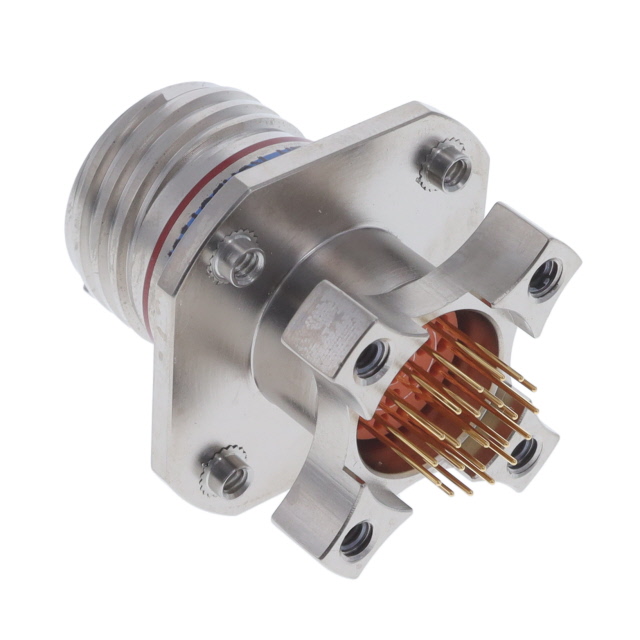

KJAD0T13F35PN115

Active

ITT Cannon, LLC

CONN RCPT MALE 22POS SOLDER

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN RCPT MALE 22POS SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	KJAD0T13F35PN115

Applications	Aviation, Communication Systems, Military, Aerospace
Color	Silver
Connector Type	Receptacle, Male Pins
Ingress Protection	Environment Resistant
Mounting Feature	Flange
Mounting Type	Through Hole, Panel Mount
Number of Positions	22 positions
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Shell Finish	Electroless Nickel
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	13
Shielding	Unshielded
Termination	Solder

Part	Shell Finish	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Termination	Primary Material	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Ingress Protection	Shielding	Mounting Type	Orientation	Mounting Feature	Color	Connector Type
ITT Cannon, LLC KJAD0T15W35PN115	Olive Drab Cadmium	Aerospace Aviation Communication Systems Military	-65 ░C	347 °F	37	Solder	Metal	15	35	Environment Resistant	Unshielded	Panel Mount Through Hole	N	Flange	Olive Drab	Male Pins Receptacle
ITT Cannon, LLC KJAD0T13F35PN115	Electroless Nickel	Aerospace Aviation Communication Systems Military	-65 ░C	200 °C	22 positions	Solder	Metal	13	35	Environment Resistant	Unshielded	Panel Mount Through Hole	N	Flange	Silver	Male Pins Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

22 Position Circular Connector Receptacle, Male Pins Solder
