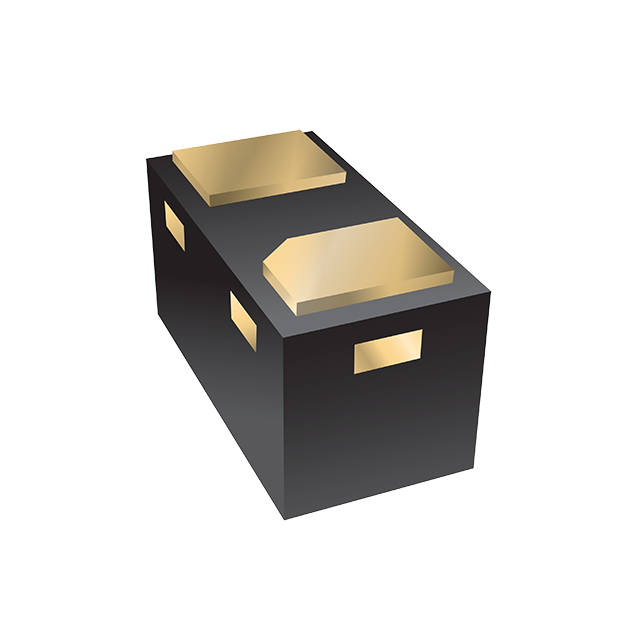

CD0201-T20C

Active

Bourns Inc.

DIODE, ESD PROTECTION, 20V, 0201

Search across all available documentation for this part.

Active

Bourns Inc.

DIODE, ESD PROTECTION, 20V, 0201

Technical Specifications

Parameters and characteristics for this part

Specification	CD0201-T20C

Applications	General Purpose
Bidirectional Channels [custom]	1
Capacitance @ Frequency	6.5 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Package / Case	0603 Metric
Package / Case	0201
Power Line Protection	False
Supplier Device Package	0201
Type	Zener
Voltage - Breakdown (Min) [Min]	22.8 V
Voltage - Clamping (Max) @ Ipp [Max]	34 V
Voltage - Reverse Standoff (Typ)	20 V

Part	Voltage - Breakdown (Min) [Min]	Voltage - Clamping (Max) @ Ipp [Max]	Mounting Type	Supplier Device Package	Capacitance @ Frequency	Type	Applications	Voltage - Reverse Standoff (Typ)	Power Line Protection	Operating Temperature [Min]	Operating Temperature [Max]	Bidirectional Channels [custom]	Package / Case	Package / Case
Bourns Inc. CD0201-T20C	22.8 V	34 V	Surface Mount	0201	6.5 pF	Zener	General Purpose	20 V		-55 °C	85 °C	1	0603 Metric	0201

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

34V Clamp Ipp Tvs Diode Surface Mount 0201
