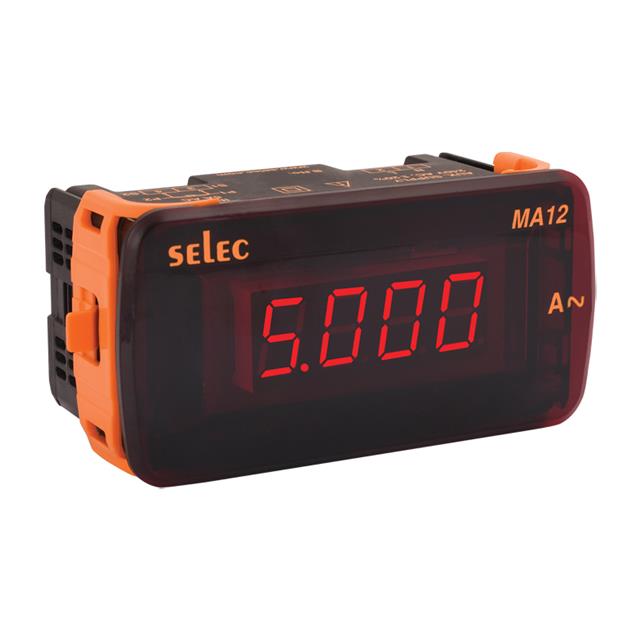

MA12-110V-CU-ROHS

Active

Selec Controls USA Inc.

LED AC AMP METER

Search across all available documentation for this part.

Active

Selec Controls USA Inc.

LED AC AMP METER

Technical Specifications

Parameters and characteristics for this part

Specification	MA12-110V-CU-ROHS

Display Characters - Height [z]	0.56 in
Display Characters - Height [z]	14.22 mm
Display Type	LED - Red Characters
Ingress Protection	IP51 - Dust Protected
Measuring Range [Max]	4960 A
Measuring Range [Min]	0 A
Measuring Type	Current
Number of Characters Per Row	4
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [x]	92 mm
Panel Cutout Dimensions [y]	46 mm
Termination Style	Screw Terminal
Type	Ammeter
Voltage - Supply	110 VAC/DC

LED AC AMP METER

Part	Voltage - Supply	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Measuring Range [Max]	Measuring Range [Min]	Display Type	Number of Characters Per Row	Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Termination Style	Display Characters - Height [z]	Display Characters - Height [z]	Measuring Type	Ingress Protection
Selec Controls USA Inc. MA12-110V-CU-ROHS	110 VAC/DC	55 °C	-10 °C	4960 A	0 A	LED - Red Characters	4	Ammeter	92 mm	46 mm	Screw Terminal	0.56 in	14.22 mm	Current	IP51 - Dust Protected

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Ammeter LED - Red Characters Display Panel Mount
