9CR0812H801

Obsolete

Sanyo Denki America Inc.

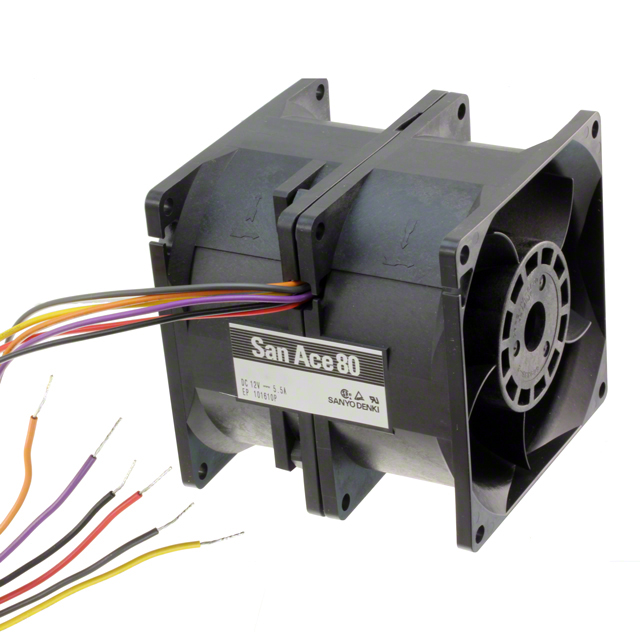

FAN AXIAL DUAL 80X80MM 12VDC

Search across all available documentation for this part.

Obsolete

Sanyo Denki America Inc.

FAN AXIAL DUAL 80X80MM 12VDC

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Rated	Fan Type	Weight	Weight	Noise	Material - Frame	Size / Dimension [y]	Size / Dimension [x]	Voltage Range [Max]	Voltage Range [Min]	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Static Pressure	Static Pressure	Material - Blade	RPM [custom]	RPM [custom]	Air Flow	Air Flow	Lifetime @ Temp.	Current Rating (Amps)	Width [y]	Termination	Approval Agency	Bearing Type
Sanyo Denki America Inc. 9CR0812H801	12 VDC	Tubeaxial (Dual)	0.772 lb	350.17 g	68 dB	Plastic	80 mm	80 mm	13.2 VDC	10.8 VDC	43.2 W	-10 °C	-10 °C	60 °C	60 °C	1.61 in H2O	401 Pa	Plastic	4600 RPM	7000 RPM	3.92 mł/min	140 CFM	40000 Hrs	3.6 A	80 mm	3 Wire Leads per Fan	CSA TUV UL	Ball
Sanyo Denki America Inc. 9CR0812P8S03	12 VDC	Tubeaxial (Dual)	0.772 lb	350.17 g	71 dB(A)	Plastic	80 mm	80 mm	13.2 VDC	10.8 VDC		-10 °C	-10 °C	60 °C	60 °C	2.09 in H2O	520 Pa	Plastic	5300	8000	4.48 m³/min	160 CFM	40000 Hrs	5.5 Amps	80 mm	4 Wire Leads per Fan	CSA TUV UL	Ball
Sanyo Denki America Inc. 9CR0812P8H03	12 VDC	Tubeaxial (Dual)	0.772 lb	350.17 g	68 dB	Plastic	80 mm	80 mm	13.2 VDC	10.8 VDC	43.2 W	-10 °C	-10 °C	60 °C	60 °C	1.61 in H2O	401 Pa	Plastic	4600 RPM	7000 RPM	3.92 mł/min	140 CFM	40000 Hrs	3.6 A	80 mm	4 Wire Leads per Fan	CSA TUV UL	Ball

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 43.77

General part information

Fan Tubeaxial (Dual) 12VDC Square - 80mm L x 80mm H Ball 140.0 CFM (3.92m³/min) 3 Wire Leads per Fan
