936227-1

Active

TE Connectivity AMP Connectors

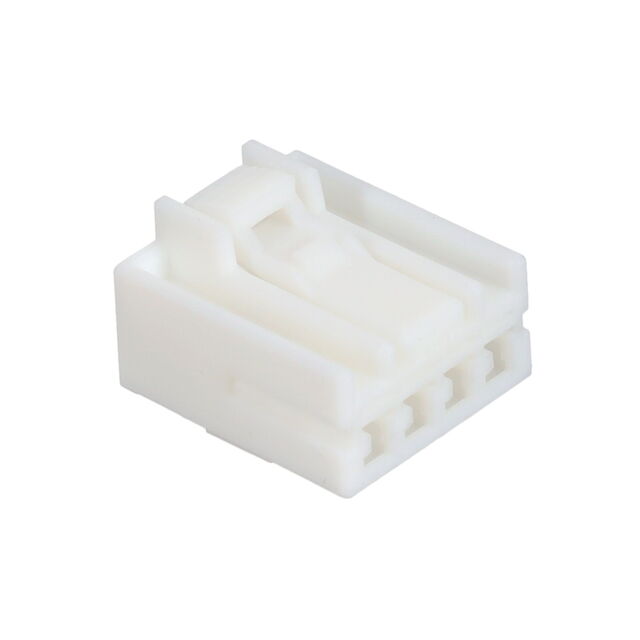

CONN PLUG HSG 4POS

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 4POS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	936227-1	936227 Series

	-	-
Color	Natural	Natural
Connector Type	Plug	Plug
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Latch Lock	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	4	4
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-30 ░C	-30 ░C

CONN PLUG HSG 4POS

Part	Connector Type	Contact Type	Number of Positions	Note	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Termination	Insulation Material	Number of Rows	Fastening Type	Color
TE Connectivity AMP Connectors 936227-1	Plug	Female Socket	4	Contacts Not Included	-30 ░C	105 ░C	Free Hanging (In-Line)	Crimp	Polybutylene Terephthalate (PBT)	2	Latch Lock	Natural
TE Connectivity AMP Connectors 936227-2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Rectangular Connectors - Housings Plug Natural
