MWSET1-1-01

Active

Essentra Access Solutions

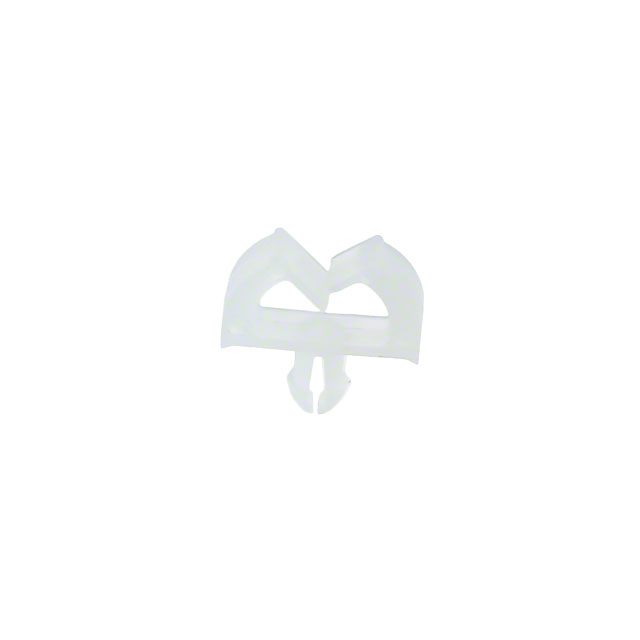

FASTENER, SADDLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 7 MM, 2 MM

Search across all available documentation for this part.

Active

Essentra Access Solutions

FASTENER, SADDLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 7 MM, 2 MM

Technical Specifications

Parameters and characteristics for this part

Specification	MWSET1-1-01

Color	Natural
Height [z]	4.06 mm
Height [z]	0.16 in
Length	7.11 mm
Length	0.28 "
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Push In
Opening Size [x]	0.19 in, 4.83 mm
Opening Size [y]	1.02 mm, 0.04 in
Panel Hole Size	1.7 mm
Panel Hole Size [x]	0.067 in
Panel Thickness	0.063 in
Panel Thickness	1.6 mm
Type	Clip, Wire Saddle
Type Attributes	Micro
Width [x]	2.03 mm
Width [x]	0.08 "

Part	Type	Color	Material	Width [x]	Width [x]	Height [z]	Height [z]	Material Flammability Rating	Panel Thickness	Panel Thickness	Type Attributes	Panel Hole Size [x]	Panel Hole Size	Length	Length	Mounting Type	Opening Size [x]	Opening Size [z]	Opening Size [x]	Opening Size [z]	Features	Opening Size [y]
Essentra Access Solutions MWSET1-2-1-01	Clip Wire Saddle	Natural	Polyamide (PA66) Nylon 6/6	2.03 mm	0.08 "	6.1 mm	0.24 in	UL94 V-2	2.36 mm	0.093 in	Micro	0.067 in	1.7 mm	7.11 mm	0.28 "	Push In	4.83 mm	2.79 mm	0.19 in	0.11 in
Essentra Access Solutions MWSET1-2-19	Clip Wire Saddle	Natural	Polyamide (PA66) Nylon 6/6	2.03 mm	0.08 "	6.1 mm	0.24 in	UL94 V-0	1.6 mm	0.063 in	Micro	0.067 in	1.7 mm	7.11 mm	0.28 "	Push In	4.83 mm	2.79 mm	0.19 in	0.11 in	Flame Retardant
Essentra Access Solutions MWSET1-1-01	Clip Wire Saddle	Natural	Polyamide (PA66) Nylon 6/6	2.03 mm	0.08 "	4.06 mm	0.16 in	UL94 V-2	1.6 mm	0.063 in	Micro	0.067 in	1.7 mm	7.11 mm	0.28 "	Push In			0.19 in 4.83 mm			0.04 in 1.02 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, Wire Saddle Natural Push In 0.190" L x 0.040" H (4.83mm x 1.02mm)
