AXK826145WG

Obsolete

Panasonic Electric Works

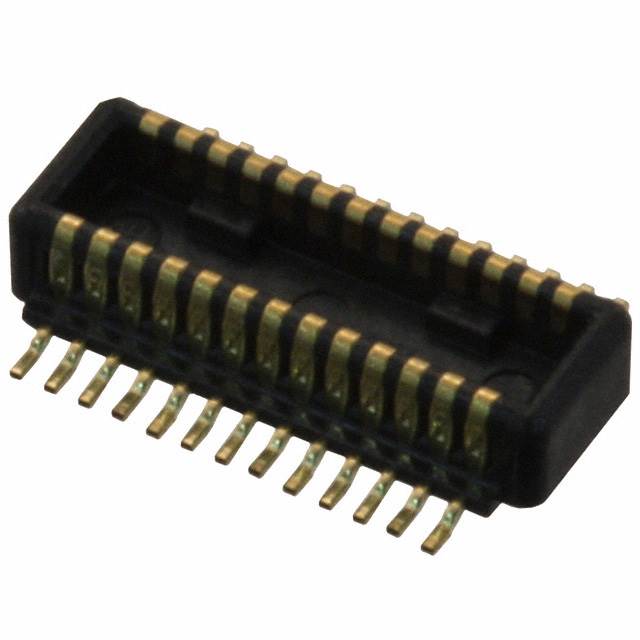

CONN HDR 26POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN HDR 26POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXK826145WG

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Height Above Board	0.052 in
Height Above Board	1.32 mm
Mated Stacking Heights	1.5 mm, 2 mm, 2.5 mm
Mounting Type	Surface Mount
Number of Positions	26
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Contact Finish	Connector Type	Pitch [x]	Pitch [x]	Mated Stacking Heights	Mounting Type	Number of Positions	Number of Rows	Height Above Board	Height Above Board
Panasonic Electric Works AXK826145WG	Gold	Header Outer Shroud Contacts	0.016 in	0.4 mm	1.5 mm 2 mm 2.5 mm	Surface Mount	26	2	0.052 in	1.32 mm
