TE Connectivity Raychem Cable Protection

828-AG11D-ES=SOCKET ASSY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

9-1437539-1

Active

TE Connectivity Raychem Cable Protection

828-AG11D-ES=SOCKET ASSY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9-1437539-1

Contact Finish - Mating	Gold
Contact Material - Mating	Copper Alloy
Contact Resistance	10 mOhm
Current Rating (Amps)	3 A
Housing Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	28
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.18 mm
Termination Post Length	0.125 in
Type	2.54 mm
Type	0.1 "
Type	DIP

1437539 Series

Part	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Housing Material	Pitch - Mating	Pitch - Mating	Type	Type	Type	Pitch - Post	Pitch - Post	Contact Resistance	Number of Positions or Pins (Grid)	Contact Finish - Mating	Current Rating (Amps)	Termination Post Length	Termination Post Length	Features	Mounting Type	Contact Material - Mating	Contact Finish - Post	Contact Material - Post [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Type [Min]	Type [Max]
TE Connectivity Raychem Cable Protection 5-1437539-3	Solder	0.127 µm	5 µin	105 ░C	-55 °C	UL94 V-0	Polyester	0.1 in	2.54 mm	0.3 "	7.62 mm	DIP	2.54 mm	0.1 in	10 mOhm	20	Gold	3 A	3.18 mm	0.125 in	Open Frame	Through Hole	Copper Alloy
TE Connectivity Raychem Cable Protection 7-1437539-7	Solder	0.127 µm	5 µin	105 ░C	-55 °C	UL94 V-0	Polyester	0.1 in	2.54 mm	0.3 "	7.62 mm	DIP	2.54 mm	0.1 in	10 mOhm	24	Gold	3 A	3.18 mm	0.125 in	Open Frame	Through Hole	Copper Alloy
TE Connectivity Raychem Cable Protection 9-1437539-6	Solder			105 ░C	-55 °C	UL94 V-0	Polyester	0.1 in	2.54 mm	0.6 in	15.24 mm	DIP	2.54 mm	0.1 in	10 mOhm		Gold		3.18 mm	0.125 in	Open Frame	Through Hole	Copper Alloy	Tin-Lead	Copper Alloy	2	6	3	2.03 µm	80 µin
TE Connectivity Raychem Cable Protection 9-1437539-1	Solder			105 ░C	-55 °C	UL94 V-0	Polyester	0.1 in	2.54 mm	0.1 "	2.54 mm	DIP	2.54 mm	0.1 in	10 mOhm	28	Gold	3 A	3.18 mm	0.125 in		Through Hole	Copper Alloy
TE Connectivity Raychem Cable Protection 7-1437539-0	Solder	0.127 µm	5 µin	105 ░C	-55 °C	UL94 V-0	Polyester	0.1 in	2.54 mm			DIP	2.54 mm	0.1 in	10 mOhm	24	Gold	3 A	3.18 mm	0.125 in	Open Frame	Through Hole	Copper Alloy								0.5 in	0.6 in
TE Connectivity Raychem Cable Protection 8-1437539-9	Solder			105 ░C	-55 °C	UL94 V-0	Polyester	0.1 in	2.54 mm	0.6 in	15.24 mm	DIP	2.54 mm	0.1 in	10 mOhm	28	Gold	3 A	3.18 mm	0.125 in	Open Frame	Through Hole	Copper Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	30	$ 2.80
		150	$ 2.70
		450	$ 2.60
		510	$ 2.49
		1020	$ 2.32

Description

General part information

1437539 Series

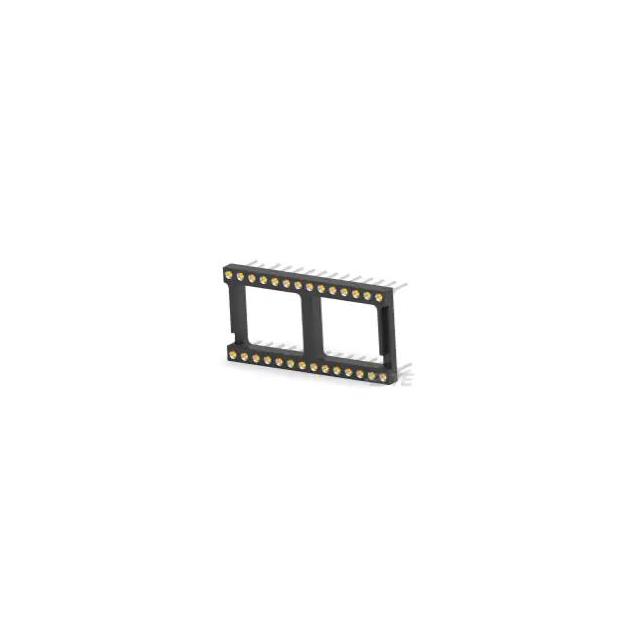

28 (2 x 14) Pos DIP, 0.1" (2.54mm) Row Spacing Socket Gold Through Hole

Documents

Technical documentation and resources
