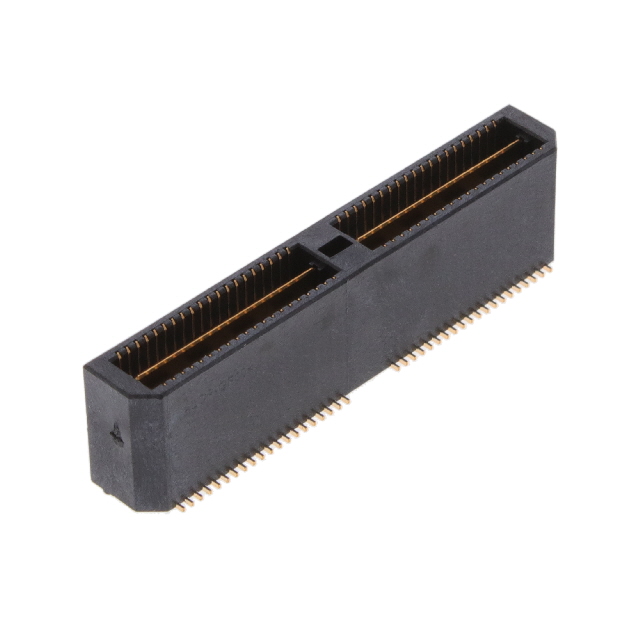

1658046-2
ActiveTE Connectivity Raychem Cable Protection
CONN PLUG 80POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
1658046-2
ActiveTE Connectivity Raychem Cable Protection
CONN PLUG 80POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1658046-2 |
|---|---|
| Connector Type | Outer Shroud Contacts, Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Height Above Board | 10.27 mm |
| Height Above Board | 0.404 in |
| Mated Stacking Heights | 11 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 80 |
| Number of Rows | 2 |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.21 | |
| 10 | $ 15.87 | |||
| 25 | $ 15.45 | |||
| 65 | $ 14.69 | |||
| 130 | $ 13.25 | |||
| 260 | $ 13.17 | |||
| 520 | $ 11.48 | |||
Description
General part information
MICTOR SB Series
Board to Board & Mezzanine Connectors MSB0.80RC-ASY140DP, -,10,VCTY
Documents
Technical documentation and resources
No documents available
