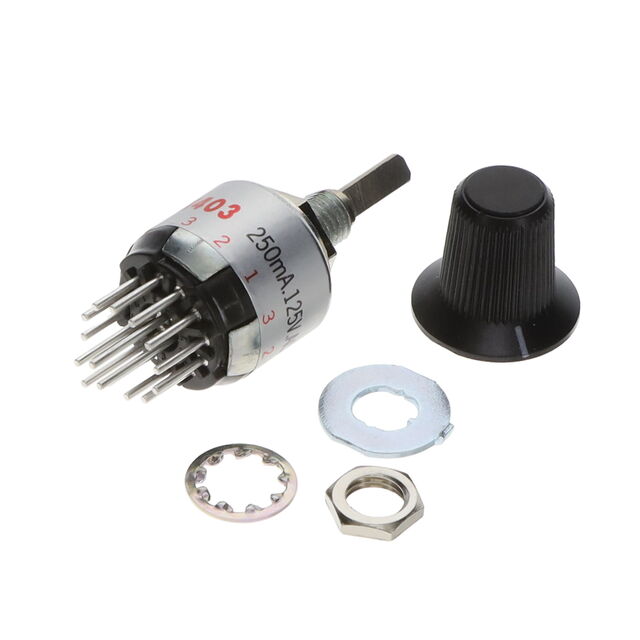

MRAN403-BA

Active

NKK Switches

SWITCH ROTARY

Search across all available documentation for this part.

Active

NKK Switches

SWITCH ROTARY

Technical Specifications

Parameters and characteristics for this part

Specification	MRAN403-BA

Actuator Length [x]	14.3 mm
Actuator Type	Knob
Angle of Throw	30 °
Circuit per Deck [custom]	4P3T
Contact Finish	Silver
Contact Material	Copper
Contact Timing	Non-Shorting
Current Rating (Amps)	250 mA
Depth Behind Panel	17 mm
Features	Process Sealed
Index Stops	Adjustable
Mounting Type	Through Hole, Panel Mount
Number of Decks [custom]	1
Number of Positions [Max]	3
Number of Positions [Min]	2
Panel Cutout Dimensions [diameter]	0.25 in
Termination Style	PC Pin
Voltage Rating - AC	125 V

Part	Termination Style	Depth Behind Panel	Contact Finish	Number of Decks [custom]	Features	Mounting Type	Voltage Rating - AC	Angle of Throw	Contact Material	Index Stops	Number of Positions [Max]	Number of Positions [Min]	Actuator Length [x]	Current Rating (Amps)	Circuit per Deck [custom]	Panel Cutout Dimensions [diameter]	Contact Timing	Actuator Type	Actuator Type [diameter]
NKK Switches MRAN403-CF	PC Pin	17 mm	Silver	1	Process Sealed	Panel Mount Through Hole	125 V	30 °	Copper	Adjustable	3	2	15.8 mm	250 mA	4P3T	0.25 in	Non-Shorting	Knob
NKK Switches MRAN403-BF	PC Pin	17 mm	Silver	1	Process Sealed	Panel Mount Through Hole	125 V	30 °	Copper	Adjustable	3	2	14.3 mm	250 mA	4P3T	0.25 in	Non-Shorting	Knob
NKK Switches MRAN403	PC Pin	17 mm	Silver	1	Process Sealed	Panel Mount Through Hole	125 V	30 °	Copper	Adjustable	3	2	10 mm	250 mA	4P3T	0.25 in	Non-Shorting	Flatted	3.17 mm
NKK Switches MRAN403-BA	PC Pin	17 mm	Silver	1	Process Sealed	Panel Mount Through Hole	125 V	30 °	Copper	Adjustable	3	2	14.3 mm	250 mA	4P3T	0.25 in	Non-Shorting	Knob
NKK Switches MRAN403-A	PC Pin	17 mm	Silver	1	Process Sealed	Panel Mount Through Hole	125 V	30 °	Copper	Adjustable	3	2	13 mm	250 mA	4P3T	0.25 in	Non-Shorting	Knob
NKK Switches MRAN403-BG	PC Pin	17 mm	Silver	1	Process Sealed	Panel Mount Through Hole	125 V	30 °	Copper	Adjustable	3	2	14.3 mm	250 mA	4P3T	0.25 in	Non-Shorting	Knob

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Switch 2 ~ 3 Position 4P3T 250mA (AC) 125 VAC Panel Mount, Through Hole
