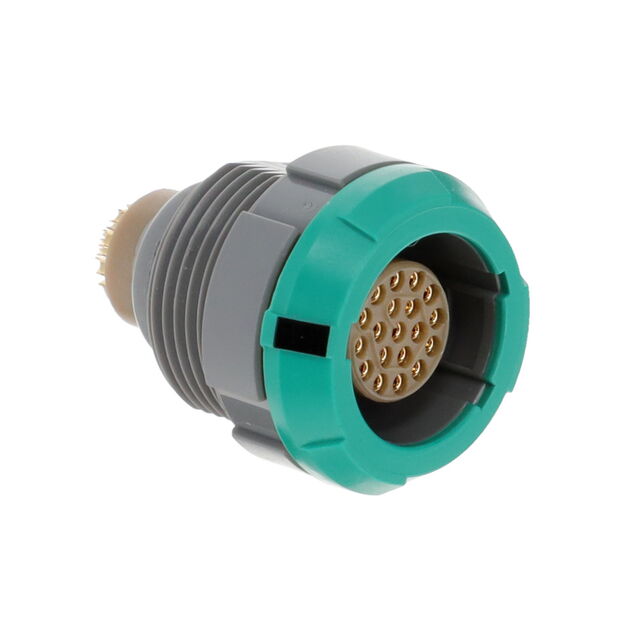

CONN RCPT FMALE 19P SOLDER CUP

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 19P SOLDER CUP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

19 Position Circular Connector Receptacle, Female Sockets Solder Cup

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	CNB.M19.GLLV	CNB.M1 Series

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement	Medical, Industrial, Automotive, Testing Equipment & Measurement
Color	Green, Gray	Gray, Yellow, Red, Green
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Current Rating (Amps)	5 A	5 - 6 A
Fastening Type	Detent Lock, Push-Pull	Detent Lock, Push-Pull
Ingress Protection	IP66	IP66
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut, Front and Rear Side Nut
Mounting Type	-	Through Hole, Panel Mount
Number of Positions	19	19
Number of Positions	-	16
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-50 °C	-50 °C
Orientation	B	B
Primary Material	Plastic	Plastic
Shell Material	Polysulfone (PSU)	Polysulfone (PSU)
Shell Size - Insert	M19	M19, M16
Shielding	Unshielded	Unshielded
Termination	-	Solder

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Part	Color	Fastening Type	Insert Material	Ingress Protection	Number of Positions	Shell Size - Insert	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Shielding	Connector Type	Orientation	Shell Material	Contact Finish - Mating	Mounting Feature	Current Rating (Amps)	Termination	Mounting Type	Number of Positions
LEMO CNB.M19.GLLJ	Gray, Yellow	Detent Lock, Push-Pull	Polyetheretherketone (PEEK)	IP66	19	M19	Automotive, Industrial, Medical, Testing Equipment & Measurement	150 °C	-50 °C	Plastic	Unshielded	Receptacle, Female Sockets	B	Polysulfone (PSU)	Gold	Bulkhead - Rear Side Nut	5 A
LEMO CNB.M16.GLNG	Gray	Detent Lock, Push-Pull	Polyetheretherketone (PEEK)	IP66		M16	Automotive, Industrial, Medical, Testing Equipment & Measurement	150 °C	-50 °C	Plastic	Unshielded	Receptacle, Female Sockets	B	Polysulfone (PSU)	Gold	Front and Rear Side Nut	6 A	Solder	Panel Mount, Through Hole	16
LEMO CNB.M19.GLLR	Gray, Red	Detent Lock, Push-Pull	Polyetheretherketone (PEEK)	IP66	19	M19	Automotive, Industrial, Medical, Testing Equipment & Measurement	150 °C	-50 °C	Plastic	Unshielded	Receptacle, Female Sockets	B	Polysulfone (PSU)	Gold	Bulkhead - Rear Side Nut	5 A
LEMO CNB.M19.GLLV	Gray, Green	Detent Lock, Push-Pull	Polyetheretherketone (PEEK)	IP66	19	M19	Automotive, Industrial, Medical, Testing Equipment & Measurement	150 °C	-50 °C	Plastic	Unshielded	Receptacle, Female Sockets	B	Polysulfone (PSU)	Gold	Bulkhead - Rear Side Nut	5 A
