1221-40115
ActiveAmphenol SV Microwave

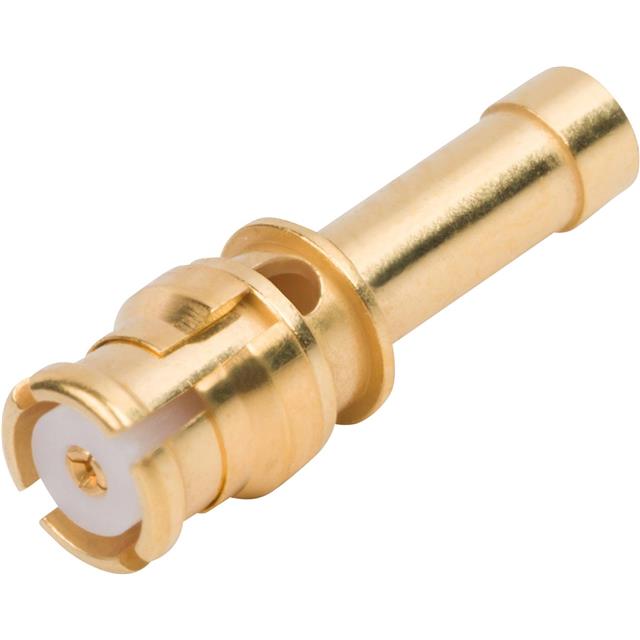

SMP FEMALE CONNECTOR, EXTENDED F
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1221-40115
ActiveAmphenol SV Microwave
SMP FEMALE CONNECTOR, EXTENDED F
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1221-40115 |
|---|---|
| Body Finish | Gold |
| Body Material | Beryllium Copper |
| Cable Group | Semi Rigid |
| Cable Group | 0.047 in |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 40 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
1221-40 Series
| Part | Fastening Type | Impedance | Dielectric Material | Shield Termination | Connector Type | Housing Color | Cable Group | Cable Group | Mounting Type | Frequency - Max [Max] | Number of Ports | Center Contact Plating | Body Material | Center Contact Material | Contact Termination | Body Finish | Features | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol SV Microwave | Bayonet Lock | 50 Ohms | Polytetrafluoroethylene (PTFE) | Solder | Female Socket Jack | Silver | 0.085 in | RG-405 | Free Hanging (In-Line) | 40 GHz | 1 | Gold | Stainless Steel | Beryllium Copper | Solder | ||||
Amphenol SV Microwave | Bayonet Lock | 50 Ohms | Polytetrafluoroethylene (PTFE) | Solder | Female Socket Jack | Gold | 0.141 in | RG-402 (.141" Flexible) | Free Hanging (In-Line) | 40 GHz | 1 | Gold | Beryllium Copper | Beryllium Copper | Solder | Gold | EMI Ring | ||
Amphenol SV Microwave | Bayonet Lock | 50 Ohms | Polytetrafluoroethylene (PTFE) | Solder | Female Socket Jack | Silver | 0.047 in | Flexible | Free Hanging (In-Line) | 40 GHz | 1 | Gold | Stainless Steel | Beryllium Copper | Solder | ||||
Amphenol SV Microwave | Snap-On | 50 Ohms | Polytetrafluoroethylene (PTFE) | Solder | Female Socket Jack | Gold | 0.047 in | Semi Rigid | Free Hanging (In-Line) | 40 GHz | 1 | Gold | Beryllium Copper | Beryllium Copper | Solder | Gold | -65 ░C | 165 °C | |
Amphenol SV Microwave | Snap-On | 50 Ohms | Polytetrafluoroethylene (PTFE) | Female Socket Jack | Gold | 316 RG-174 | Free Hanging (In-Line) Right Angle | 3 GHz | 1 | Gold | Beryllium Copper | Beryllium Copper | Solder | Gold | -55 °C | 125 °C | |||
Amphenol SV Microwave | Snap-On | 50 Ohms | Polytetrafluoroethylene (PTFE) | Solder | Female Socket Jack | Gold | 0.047 in | Flexible | Free Hanging (In-Line) | 40 GHz | 1 | Gold | Beryllium Copper | Beryllium Copper | Solder | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 63.00 | |
| 10 | $ 57.81 | |||
| 25 | $ 55.59 | |||
| 50 | $ 53.73 | |||
| 100 | $ 50.77 | |||
Description
General part information
1221-40 Series
SMP Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder
