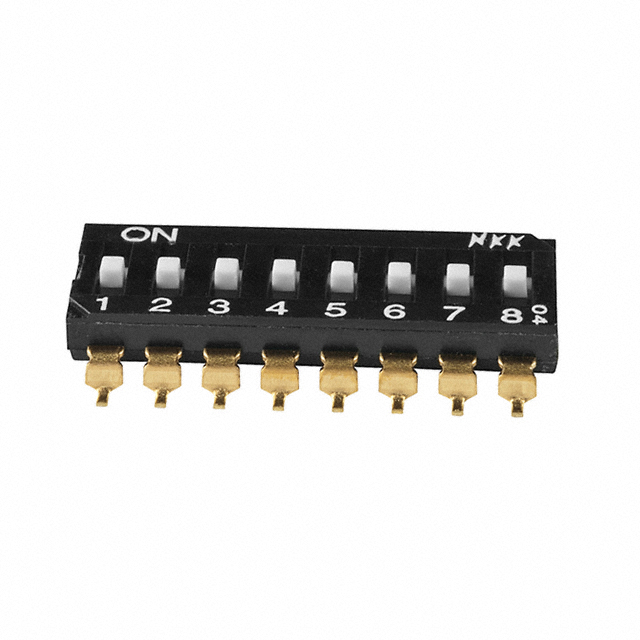

JS0208AP4

Active

NKK Switches

SWITCH SLIDE DIP SPST 0.025A 24V

Search across all available documentation for this part.

Active

NKK Switches

SWITCH SLIDE DIP SPST 0.025A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	JS0208AP4

Actuator Level	Raised
Actuator Type	Slide (Standard)
Body Material	Polyamide (PA), Nylon, Glass Filled
Circuit	SPST
Contact Finish	Gold
Contact Material	Beryllium Copper
Current Rating (Amps)	25 mA
Electrical Life	2000 Steps
Height Above Board	4.33 mm
Height Above Board	0.17 in
Length	21.26 mm
Length	0.837 in
Mechanical Life	2000 Cycles
Mounting Type	Surface Mount
Number of Positions	8
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	Gull Wing
Voltage Rating	24 VDC
Washable	False

Part	Electrical Life	Washable	Mounting Type	Number of Positions	Actuator Level	Length	Length	Voltage Rating	Contact Material	Pitch [x]	Pitch	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Contact Finish	Height Above Board	Height Above Board	Actuator Type	Mechanical Life	Termination Style	Body Material	Current Rating (Amps)
NKK Switches JS0208AP4-S	2000 Steps		Surface Mount	8	Raised	21.26 mm	0.837 in	24 VDC	Beryllium Copper	0.1 in	Full	2.54 mm	-20 C	70 °C	SPST	Gold	4.33 mm	0.17 in	Slide (Standard)	2000 Cycles	Gull Wing	Polyamide (PA) Nylon Glass Filled	25 mA
NKK Switches JS0208AP4	2000 Steps		Surface Mount	8	Raised	21.26 mm	0.837 in	24 VDC	Beryllium Copper	0.1 in	Full	2.54 mm	-20 C	70 °C	SPST	Gold	4.33 mm	0.17 in	Slide (Standard)	2000 Cycles	Gull Wing	Polyamide (PA) Nylon Glass Filled	25 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch SPST 8 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
