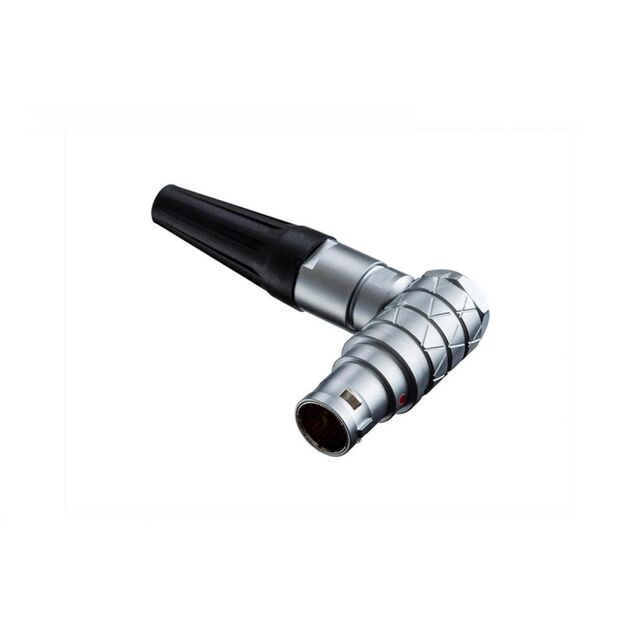

FLBB-02FHMS-GCP-207

Active

Amphenol LTW

FLOS, B SERIES B SIZE, 10A, 02 P

Search across all available documentation for this part.

Active

Amphenol LTW

FLOS, B SERIES B SIZE, 10A, 02 P

Technical Specifications

Parameters and characteristics for this part

Specification	FLBB-02FHMS-GCP-207

Cable Opening [Max] [diameter]	5.2 mm
Cable Opening [Max] [diameter]	0.205 in
Cable Opening [Min] [diameter]	0.169 in
Cable Opening [Min] [diameter]	4.3 mm
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP50
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	G
Primary Material	Metal
Shell Material	Metal
Shell Size - Insert	B-2
Shielding	Shielded
Voltage Rating	400 V

Part	Number of Positions	Ingress Protection	Shell Material	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Connector Type	Contact Finish - Mating	Features	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Mounting Type	Primary Material	Contact Material	Shell Size - Insert	Shielding	Orientation	Color	Current Rating (Amps)	Voltage Rating
Amphenol LTW FLBB-02FHMS-GCP-207	2	IP50	Metal	125 °C	-40 °C	Push-Pull	Male Pins Plug	Gold	Backshell	5.2 mm	0.205 in	0.169 in	4.3 mm	Free Hanging (In-Line) Right Angle	Metal	Copper Alloy	B-2	Shielded	G	Silver	10 A	400 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 23.58

General part information

2 Position Circular Connector Plug, Male Pins Solder Cup
