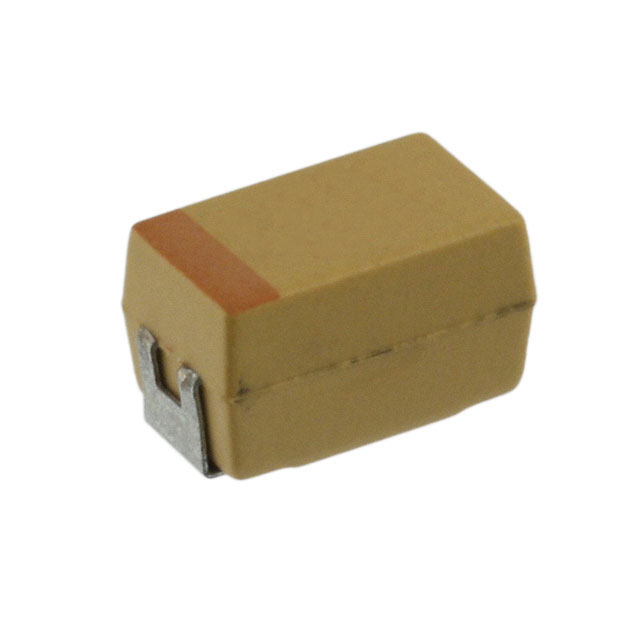

T498X226K035ATE500
ActiveKEMET
CAPACITOR,22UF,35VDC,10-% TOL,10+% TOL ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
T498X226K035ATE500
ActiveKEMET
CAPACITOR,22UF,35VDC,10-% TOL,10+% TOL ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T498X226K035ATE500 |
|---|---|
| Capacitance | 22 µF |
| ESR (Equivalent Series Resistance) | 500 mOhm |
| Features | Automotive |
| Grade | Automotive |
| Height - Seated (Max) [Max] | 0.169 " |
| Height - Seated (Max) [Max] | 4.3 mm |
| Lifetime @ Temp. | 2000 Hrs |
| Manufacturer Size Code | X |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 7343 Metric |
| Package / Case | 2917 |
| Qualification | AEC-Q200 |
| Ratings | AEC-Q200 |
| Size / Dimension [x] | 0.287 " |
| Size / Dimension [x] | 7.3 mm |
| Size / Dimension [y] | 4.3 mm |
| Size / Dimension [y] | 0.169 " |
| Tolerance | 10 % |
| Type | Molded |
| Voltage - Rated | 35 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.64 | |
| 10 | $ 2.80 | |||
| 50 | $ 2.53 | |||
| 100 | $ 2.17 | |||
| Digi-Reel® | 1 | $ 3.64 | ||
| 10 | $ 2.80 | |||
| 50 | $ 2.53 | |||
| 100 | $ 2.17 | |||
| Tape & Reel (TR) | 500 | $ 1.75 | ||
| 1000 | $ 1.65 | |||
| 1500 | $ 1.61 | |||
| 2500 | $ 1.55 | |||
| 3500 | $ 1.52 | |||
| 5000 | $ 1.49 | |||
| Newark | Each (Supplied on Full Reel) | 1 | $ 1.92 | |
| 2000 | $ 1.83 | |||
| 4000 | $ 1.70 | |||
| 8000 | $ 1.59 | |||
| 12000 | $ 1.53 | |||
| 20000 | $ 1.50 | |||
Description
General part information
T498X Series
22 µF Molded Tantalum Capacitors 35 V 2917 (7343 Metric) 500mOhm @ 100kHz
