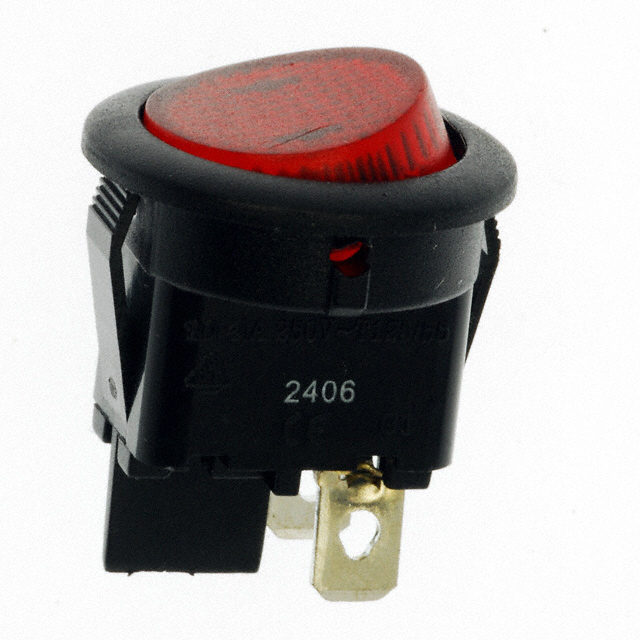

RRA22H3BBRLN

Active

ZF Electronics

SWITCH ROCKER SPST 10A 125V

Search across all available documentation for this part.

Active

ZF Electronics

SWITCH ROCKER SPST 10A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	RRA22H3BBRLN

Actuator Marking	No Marking
Actuator Type	Round - Illuminated
Circuit	SPST
Color - Actuator/Cap	Red
Current Rating (Amps)	10 A
Electrical Life	6000 Cycles
Illumination Type, Color	Red, Neon
Illumination Voltage (Nominal)	125 VAC
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Snap-In
Switch Function	On-Off
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V

Part	Illumination Voltage (Nominal)	Color - Actuator/Cap	Voltage Rating - AC	Actuator Type	Electrical Life	Actuator Marking	Termination Style	Illumination Type, Color	Current Rating (Amps)	Mounting Type	Mechanical Life	Circuit	Switch Function
ZF Electronics RRA22H3BBGLN	125 VAC	Green	125 V	Round - Illuminated	6000 Cycles	No Marking	Quick Connect - 0.187" (4.7mm)	Green Neon	10 A	Panel Mount Snap-In	100000 Cycles	SPST	On-Off
ZF Electronics RRA22H3BBALN	125 VAC	Amber	125 V	Round - Illuminated	6000 Cycles	No Marking	Quick Connect - 0.187" (4.7mm)	Amber Neon	10 A	Panel Mount Snap-In	100000 Cycles	SPST	On-Off
ZF Electronics RRA22H3BBRLN	125 VAC	Red	125 V	Round - Illuminated	6000 Cycles	No Marking	Quick Connect - 0.187" (4.7mm)	Neon Red	10 A	Panel Mount Snap-In	100000 Cycles	SPST	On-Off
ZF Electronics RRA22H3BBBNN		Black	125 V	Round	6000 Cycles	No Marking	Quick Connect - 0.187" (4.7mm)		10 A	Panel Mount Snap-In	100000 Cycles	SPST	On-Off
ZF Electronics RRA22H3BBRHN	12 VDC	Red	125 V	Round - Illuminated	6000 Cycles	No Marking	Quick Connect - 0.187" (4.7mm)	Incandescent Red	10 A	Panel Mount Snap-In	100000 Cycles	SPST	On-Off

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPST 10A (AC) 125 V Panel Mount, Snap-In
