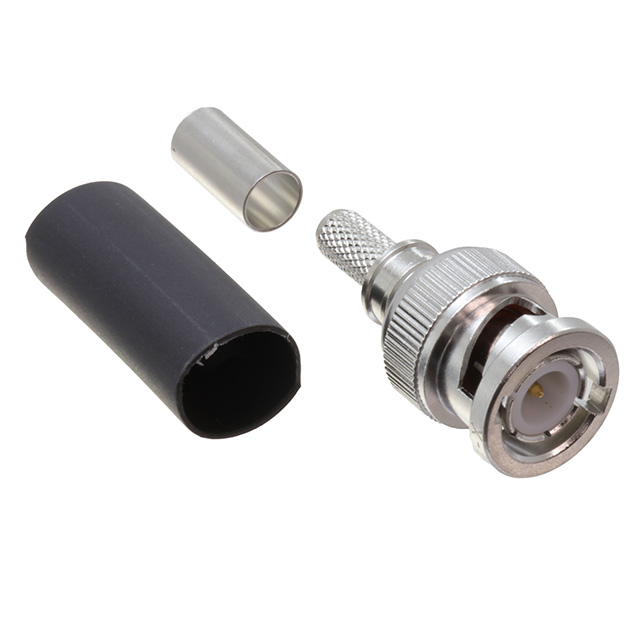

EZ-200-BM-X
ActiveAmphenol Times Microwave Systems
BNC-MALE (PLUG) CRIMP CONNECTOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EZ-200-BM-X
ActiveAmphenol Times Microwave Systems
BNC-MALE (PLUG) CRIMP CONNECTOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EZ-200-BM-X | EZ-200 Series |
|---|---|---|
| Body Finish | White Bronze | Nickel, White Bronze |
| Body Material | Brass | Brass, Stainless Steel |
| Cable Group | LMR-200 | LMR-200-75, LMR-200 |
| Center Contact Material | Beryllium Copper | Beryllium Copper, Brass |
| Center Contact Plating | Gold | Gold |
| Connector Style | BNC | F Type, RP-TNC, SMA, BNC, N Type, TNC |
| Connector Type | Male Pin, Plug | Male Pin, Plug, Female Socket, Jack |
| Contact Termination | Push On | Push On |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | - | Field Installable |
| Frequency - Max [Max] | 4 GHz | 1 - 6000 GHz |
| Housing Color | Silver | Silver |
| Impedance | 50 Ohms | 50 - 75 Ohms |
| Mating Cycles | 500 | 500 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle |
| Number of Ports | 1 | 1 |
| Operating Temperature [Max] | 125 °C | 85 - 165 °C |
| Operating Temperature [Min] | -40 °C | -65 - -40 °C |
| Shield Termination | Crimp | Crimp |
| Voltage Rating | - | 500 V |
EZ-200 Series
F-MALE (PLUG) CRIMP CONNECTOR, N
| Part | Contact Termination | Frequency - Max [Max] | Cable Group | Connector Type | Center Contact Plating | Housing Color | Operating Temperature [Max] | Operating Temperature [Min] | Impedance | Connector Style | Shield Termination | Body Finish | Number of Ports | Features | Mounting Type | Body Material | Center Contact Material | Voltage Rating | Dielectric Material | Mating Cycles | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Times Microwave Systems EZ-200-FM-75-X | Push On | 1 GHz | LMR-200-75 | Male Pin, Plug | Gold | Silver | 85 °C | -40 °C | 75 Ohms | F Type | Crimp | Nickel | 1 | Field Installable | Free Hanging (In-Line) | ||||||
Amphenol Times Microwave Systems EZ-200-TM-RP | Push On | 3 GHz | LMR-200 | Female Socket, Plug | Gold | Silver | 85 °C | -40 °C | 50 Ohms | RP-TNC | Crimp | White Bronze | 1 | Free Hanging (In-Line) | Brass | Beryllium Copper | 500 V | Polytetrafluoroethylene (PTFE) | |||
Amphenol Times Microwave Systems EZ-200-SM-X | Push On | 6000 MHz | LMR-200 | Male Pin, Plug | Gold | Silver | 125 °C | -40 °C | 50 Ohms | SMA | Crimp | White Bronze | 1 | Free Hanging (In-Line) | Brass | Beryllium Copper | Polytetrafluoroethylene (PTFE) | 500 | |||
Amphenol Times Microwave Systems EZ-200-BF-X | Push On | 4 GHz | LMR-200 | Female Socket, Jack | Gold | Silver | 125 °C | -40 °C | 50 Ohms | BNC | Crimp | White Bronze | 1 | Free Hanging (In-Line) | Brass | Beryllium Copper | Polytetrafluoroethylene (PTFE) | 500 | Bayonet Lock | ||
Amphenol Times Microwave Systems EZ-200-SM-RA-SS-X | Push On | 6000 MHz | LMR-200 | Male Pin, Plug | Gold | Silver | 125 °C | -55 °C | 50 Ohms | SMA | Crimp | 1 | Free Hanging (In-Line), Right Angle | Stainless Steel | Beryllium Copper | 500 V | Polytetrafluoroethylene (PTFE) | 500 | |||
Amphenol Times Microwave Systems EZ-200-NMH-75-X | Push On | 3 GHz | LMR-200-75 | Male Pin, Plug | Gold | Silver | 125 °C | -40 °C | 75 Ohms | N Type | Crimp | White Bronze | 1 | Free Hanging (In-Line) | Brass | Beryllium Copper | Polytetrafluoroethylene (PTFE) | 500 | |||
Amphenol Times Microwave Systems EZ-200-TM-RA-X | Push On | 6000 MHz | LMR-200 | Male Pin, Plug | Gold | Silver | 125 °C | -55 °C | 50 Ohms | TNC | Crimp | White Bronze | 1 | Free Hanging (In-Line), Right Angle | Brass | Brass | 500 V | Polytetrafluoroethylene (PTFE) | 500 | ||
Amphenol Times Microwave Systems EZ-200-SF-SS-X | Push On | 6000 MHz | LMR-200 | Female Socket, Jack | Gold | Silver | 125 °C | -55 °C | 50 Ohms | SMA | Crimp | 1 | Free Hanging (In-Line) | Stainless Steel | Beryllium Copper | 500 V | Polytetrafluoroethylene (PTFE) | 500 | |||
Amphenol Times Microwave Systems EZ-200-TM-X | Push On | 6000 MHz | LMR-200 | Male Pin, Plug | Gold | Silver | 165 °C | -65 ░C | 50 Ohms | TNC | Crimp | White Bronze | 1 | Free Hanging (In-Line) | Brass | Beryllium Copper | Polytetrafluoroethylene (PTFE) | ||||
Amphenol Times Microwave Systems EZ-200-BM-X | Push On | 4 GHz | LMR-200 | Male Pin, Plug | Gold | Silver | 125 °C | -40 °C | 50 Ohms | BNC | Crimp | White Bronze | 1 | Free Hanging (In-Line) | Brass | Beryllium Copper | Polytetrafluoroethylene (PTFE) | 500 | Bayonet Lock |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 11.53 | |
| 10 | $ 10.22 | |||
| 25 | $ 9.82 | |||
| 50 | $ 9.43 | |||
| 100 | $ 9.22 | |||
Description
General part information
EZ-200 Series
BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Push On
