EZ-200-SM-RA-SS-X

Active

Amphenol Times Microwave Systems

SMA MALE (PLUG), CRIMP CONNECTOR

Deep-Dive with AI

Search across all available documentation for this part.

EZ-200-SM-RA-SS-X

Active

Amphenol Times Microwave Systems

SMA MALE (PLUG), CRIMP CONNECTOR

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	50	$ 26.62

Description

General part information

EZ-200 Series

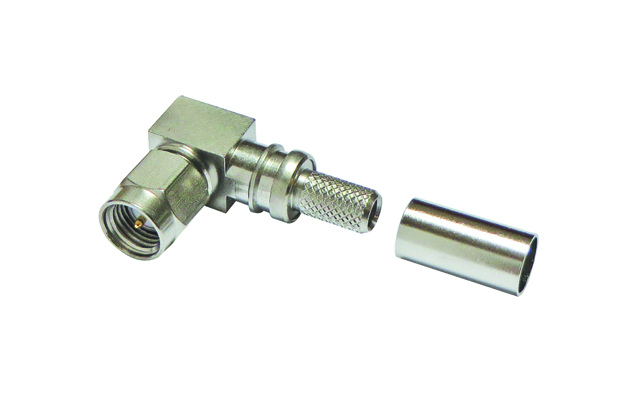

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Push On

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EZ-200-SM-RA-SS-X	EZ-200 Series

Body Finish	-	Nickel, White Bronze
Body Material	Stainless Steel	Brass, Stainless Steel
Cable Group	LMR-200	LMR-200-75, LMR-200
Center Contact Material	Beryllium Copper	Beryllium Copper, Brass
Center Contact Plating	Gold	Gold
Connector Style	SMA	F Type, RP-TNC, SMA, BNC, N Type, TNC
Connector Type	Male Pin, Plug	Male Pin, Plug, Female Socket, Jack
Contact Termination	Push On	Push On
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	-	Bayonet Lock
Features	-	Field Installable
Frequency - Max [Max]	6000 MHz	1 - 6000 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 - 75 Ohms
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature [Max]	125 °C	85 - 165 °C
Operating Temperature [Min]	-55 °C	-65 - -40 °C
Shield Termination	Crimp	Crimp
Voltage Rating	500 V	500 V

EZ-200 Series

F-MALE (PLUG) CRIMP CONNECTOR, N

Part	Contact Termination	Frequency - Max [Max]	Cable Group	Connector Type	Center Contact Plating	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Connector Style	Shield Termination	Body Finish	Number of Ports	Features	Mounting Type	Body Material	Center Contact Material	Voltage Rating	Dielectric Material	Mating Cycles	Fastening Type
Amphenol Times Microwave Systems EZ-200-FM-75-X	Push On	1 GHz	LMR-200-75	Male Pin, Plug	Gold	Silver	85 °C	-40 °C	75 Ohms	F Type	Crimp	Nickel	1	Field Installable	Free Hanging (In-Line)
Amphenol Times Microwave Systems EZ-200-TM-RP	Push On	3 GHz	LMR-200	Female Socket, Plug	Gold	Silver	85 °C	-40 °C	50 Ohms	RP-TNC	Crimp	White Bronze	1		Free Hanging (In-Line)	Brass	Beryllium Copper	500 V	Polytetrafluoroethylene (PTFE)
Amphenol Times Microwave Systems EZ-200-SM-X	Push On	6000 MHz	LMR-200	Male Pin, Plug	Gold	Silver	125 °C	-40 °C	50 Ohms	SMA	Crimp	White Bronze	1		Free Hanging (In-Line)	Brass	Beryllium Copper		Polytetrafluoroethylene (PTFE)	500
Amphenol Times Microwave Systems EZ-200-BF-X	Push On	4 GHz	LMR-200	Female Socket, Jack	Gold	Silver	125 °C	-40 °C	50 Ohms	BNC	Crimp	White Bronze	1		Free Hanging (In-Line)	Brass	Beryllium Copper		Polytetrafluoroethylene (PTFE)	500	Bayonet Lock
Amphenol Times Microwave Systems EZ-200-SM-RA-SS-X	Push On	6000 MHz	LMR-200	Male Pin, Plug	Gold	Silver	125 °C	-55 °C	50 Ohms	SMA	Crimp		1		Free Hanging (In-Line), Right Angle	Stainless Steel	Beryllium Copper	500 V	Polytetrafluoroethylene (PTFE)	500
Amphenol Times Microwave Systems EZ-200-NMH-75-X	Push On	3 GHz	LMR-200-75	Male Pin, Plug	Gold	Silver	125 °C	-40 °C	75 Ohms	N Type	Crimp	White Bronze	1		Free Hanging (In-Line)	Brass	Beryllium Copper		Polytetrafluoroethylene (PTFE)	500
Amphenol Times Microwave Systems EZ-200-TM-RA-X	Push On	6000 MHz	LMR-200	Male Pin, Plug	Gold	Silver	125 °C	-55 °C	50 Ohms	TNC	Crimp	White Bronze	1		Free Hanging (In-Line), Right Angle	Brass	Brass	500 V	Polytetrafluoroethylene (PTFE)	500
Amphenol Times Microwave Systems EZ-200-SF-SS-X	Push On	6000 MHz	LMR-200	Female Socket, Jack	Gold	Silver	125 °C	-55 °C	50 Ohms	SMA	Crimp		1		Free Hanging (In-Line)	Stainless Steel	Beryllium Copper	500 V	Polytetrafluoroethylene (PTFE)	500
Amphenol Times Microwave Systems EZ-200-TM-X	Push On	6000 MHz	LMR-200	Male Pin, Plug	Gold	Silver	165 °C	-65 ░C	50 Ohms	TNC	Crimp	White Bronze	1		Free Hanging (In-Line)	Brass	Beryllium Copper		Polytetrafluoroethylene (PTFE)
Amphenol Times Microwave Systems EZ-200-BM-X	Push On	4 GHz	LMR-200	Male Pin, Plug	Gold	Silver	125 °C	-40 °C	50 Ohms	BNC	Crimp	White Bronze	1		Free Hanging (In-Line)	Brass	Beryllium Copper		Polytetrafluoroethylene (PTFE)	500	Bayonet Lock
