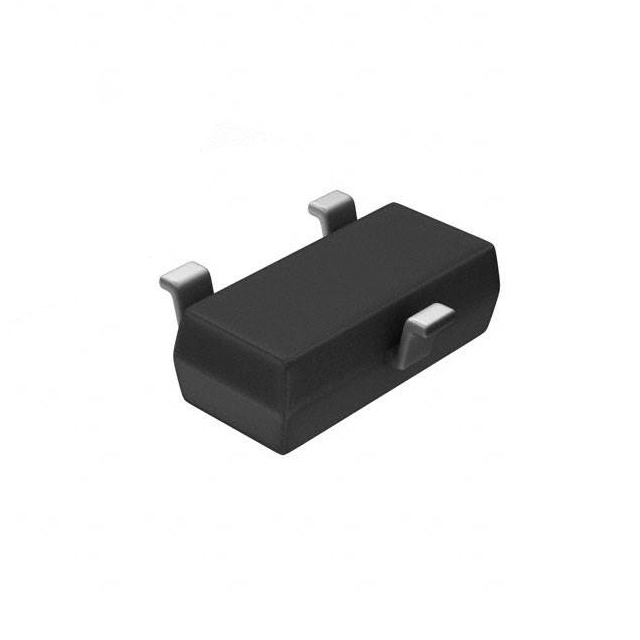

BAR6306E6327HTSA1
ActiveInfineon Technologies
RF DIODE PIN 50V 250MW SOT23-3
Deep-Dive with AI
Search across all available documentation for this part.
BAR6306E6327HTSA1
ActiveInfineon Technologies
RF DIODE PIN 50V 250MW SOT23-3
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BAR6306E6327HTSA1 |
|---|---|
| Capacitance @ Vr, F | 0.3 pF |
| Current - Max [Max] | 100 mA |
| Diode Type | PIN - 1 Pair Common Anode |
| Operating Temperature | 150 °C |
| Package / Case | SOT-23-3, TO-236-3, SC-59 |
| Power Dissipation (Max) [Max] | 250 mW |
| Resistance @ If, F | 1 Ohm |
| Supplier Device Package | PG-SOT23 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.28 | |
| 10 | $ 0.19 | |||
| 25 | $ 0.17 | |||
| 100 | $ 0.15 | |||
| 250 | $ 0.13 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.12 | |||
| Digi-Reel® | 1 | $ 0.28 | ||
| 10 | $ 0.19 | |||
| 25 | $ 0.17 | |||
| 100 | $ 0.15 | |||
| 250 | $ 0.13 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.12 | |||
| Tape & Reel (TR) | 3000 | $ 0.12 | ||
| 6000 | $ 0.12 | |||
| 15000 | $ 0.11 | |||
| 30000 | $ 0.11 | |||
| 75000 | $ 0.10 | |||
Description
General part information
BAR6306 Series
This Infineon RF PIN diodes provides fast switching high-voltage handling capabilities, low power loss and is mostly suited for frequencies up to 3 GHz. Its low capacitance and low forward resistance make it suitable for a diversity of switching applications, simplify design-in and support designers in creating versatile end-solutions.
Documents
Technical documentation and resources
No documents available
