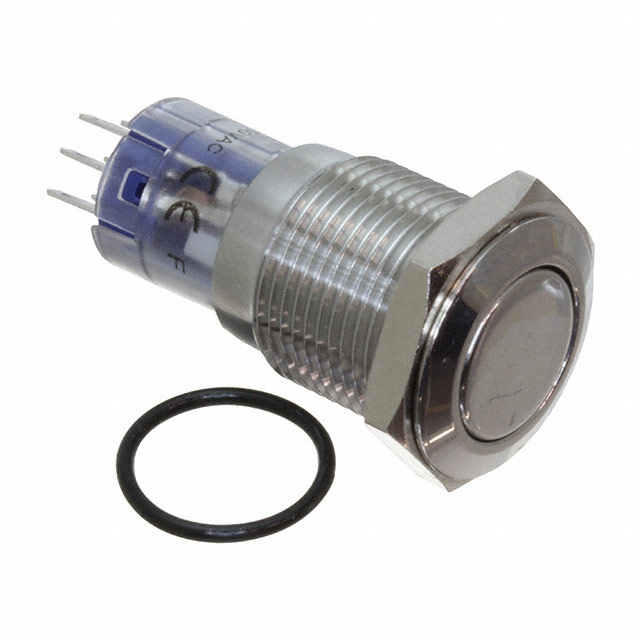

Specification	MP0045/1E0NN000S

Actuator Marking	No Marking
Actuator Type	Round, Flush, Button
Circuit	DPDT
Color - Actuator/Cap	Silver
Current Rating	3 A
Electrical Life (Cycles)	30000 Cycles
Features	Stainless Steel
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mechanical Life (Cycles)	200000 Cycles
Mounting Type	Front, Panel Mount
Operating Temperature (Max)	55 °C
Operating Temperature (Min)	-20 °C
Panel Cutout Diameter	16.2 mm
Panel Cutout Shape	Circular
Switch Function	On-On
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	250 V

MP0045 Series

Part	Type	Mounting Type	Switch Function	Illumination Voltage (Nominal)	Features	Ingress Protection	Circuit	Current Rating	Color	Illumination Type	Voltage Rating - AC	Termination Style	Actuator Marking	Panel Cutout Diameter	Panel Cutout Shape	Color - Actuator/Cap	Actuator Type	Operating Temperature (Min)	Operating Temperature (Max)	Electrical Life (Cycles)	Mechanical Life (Cycles)	Ingress Protection Description	Ingress Protection IP Rating
BULGIN LIMITED MP0045/1D2AM012	Illuminated Standard	Front Panel Mount	On-Mom	12 V	Stainless Steel	IP40	DPDT	3 A	Amber	LED	250 V	Solder Lug	No Marking	16.2 mm	Circular	Silver	Button Flush Round	-20 °C	55 °C	30000 Cycles	200000 Cycles
BULGIN LIMITED MP0045/1D1RD220S	Illuminated Standard	Front Panel Mount	On-Mom	220 VDC	Stainless Steel		DPDT	3 A	Red	LED	250 V	Solder Lug	No Marking	16.2 mm	Circular	Silver	Button Flush Round	-20 °C	55 °C	30000 Cycles	200000 Cycles	Dust Tight Waterproof	IP67
BULGIN LIMITED MP0045/1D2AM012S	Illuminated Standard	Front Panel Mount	On-Mom	12 V	Stainless Steel		DPDT	3 A	Amber	LED	250 V	Solder Lug	No Marking	16.2 mm	Circular	Silver	Button Flush Round	-20 °C	55 °C	30000 Cycles	200000 Cycles	Dust Tight Waterproof	IP67
BULGIN LIMITED MP0045/1E2GN012S	Illuminated Standard	Front Panel Mount	On-On	12 V	Stainless Steel		DPDT	3 A	Green	LED	250 V	Solder Lug	No Marking	16.2 mm	Circular	Silver	Button Flush Round	-20 °C	55 °C	30000 Cycles	200000 Cycles	Dust Tight Waterproof	IP67
BULGIN LIMITED MP0045/1D2RD220S	Illuminated Standard	Front Panel Mount	On-Mom	220 VDC	Stainless Steel		DPDT	3 A	Red	LED	250 V	Solder Lug	No Marking	16.2 mm	Circular	Silver	Button Flush Round	-20 °C	55 °C	30000 Cycles	200000 Cycles	Dust Tight Waterproof	IP67
BULGIN LIMITED MP0045/1E1RD012S	Illuminated Standard	Front Panel Mount	On-On	12 V	Stainless Steel		DPDT	3 A	Red	LED	250 V	Solder Lug	No Marking	16.2 mm	Circular	Silver	Button Flush Round	-20 °C	55 °C	30000 Cycles	200000 Cycles	Dust Tight Waterproof	IP67
BULGIN LIMITED MP0045/1D2GN220S	Illuminated Standard	Front Panel Mount	On-Mom	220 VDC	Stainless Steel		DPDT	3 A	Green	LED	250 V	Solder Lug	No Marking	16.2 mm	Circular	Silver	Button Flush Round	-20 °C	55 °C	30000 Cycles	200000 Cycles	Dust Tight Waterproof	IP67
BULGIN LIMITED MP0045/1E1RD220S	Illuminated Standard	Front Panel Mount	On-On	220 VDC	Stainless Steel		DPDT	3 A	Red	LED	250 V	Solder Lug	No Marking	16.2 mm	Circular	Silver	Button Flush Round	-20 °C	55 °C	30000 Cycles	200000 Cycles	Dust Tight Waterproof	IP67
BULGIN LIMITED MP0045/3D0NN000	Standard	Front Panel Mount	On-Mom		Stainless Steel	IP40	DPDT	3 A			250 V	Solder Lug	No Marking	16.2 mm	Circular	Silver	Button Round	-20 °C	55 °C	30000 Cycles	200000 Cycles
BULGIN LIMITED MP0045/1E2BL220S	Illuminated Standard	Front Panel Mount	On-On	220 VDC	Stainless Steel		DPDT	3 A	Blue	LED	250 V	Solder Lug	No Marking	16.2 mm	Circular	Silver	Button Flush Round	-20 °C	55 °C	30000 Cycles	200000 Cycles	Dust Tight Waterproof	IP67
