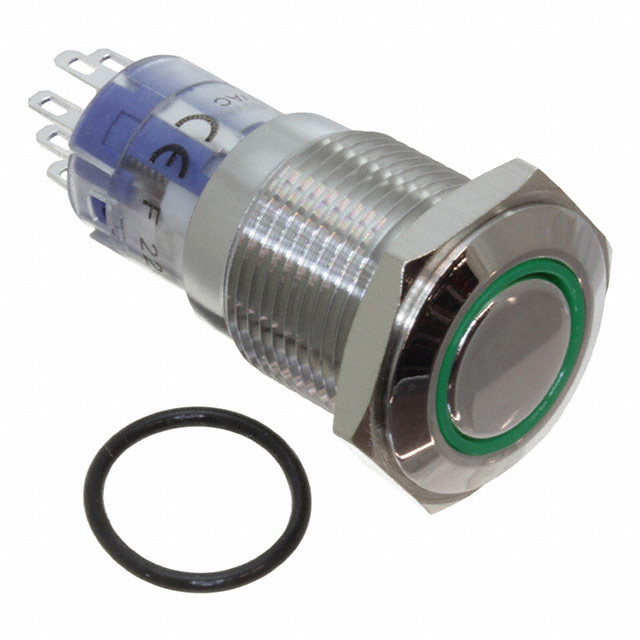

MP0045/1D2GN220S

Active

BULGIN LIMITED

SWITCH PB DPST MOM ILLUM GRN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MP0045/1D2GN220S

Active

BULGIN LIMITED

SWITCH PB DPST MOM ILLUM GRN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MP0045/1D2GN220S

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	DPDT
Color - Actuator/Cap	Silver
Current Rating (Amps)	3 A
Electrical Life	30000 Cycles
Features	Stainless Steel
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	220 V
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	16.2 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Illuminated, Standard
Voltage Rating - AC	250 V

MP0045 Series

Part	Current Rating (Amps)	Ingress Protection	Switch Function	Voltage Rating - AC	Mechanical Life	Type	Illumination Voltage (Nominal)	Mounting Type	Actuator Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Circuit	Electrical Life	Illumination Type, Color	Actuator Marking	Panel Cutout Dimensions [diameter]	Termination Style
BULGIN LIMITED MP0045/1D2AM012	3 A	IP40	On-Mom	250 V	200000 Cycles	Illuminated Standard	12 VDC	Panel Mount Front	Button Flush Round	Stainless Steel	55 °C	-20 C	Silver	DPDT	30000 Cycles	Amber LED	No Marking	16.2 mm	Solder Lug
BULGIN LIMITED MP0045/1D1RD220S	3 A	IP67 - Dust Tight Waterproof	On-Mom	250 V	200000 Cycles	Illuminated Standard	220 V	Panel Mount Front	Button Flush Round	Stainless Steel	55 °C	-20 C	Silver	DPDT	30000 Cycles	LED Red	No Marking	16.2 mm	Solder Lug
BULGIN LIMITED MP0045/1D2AM012S	3 A	IP67 - Dust Tight Waterproof	On-Mom	250 V	200000 Cycles	Illuminated Standard	12 VDC	Panel Mount Front	Button Flush Round	Stainless Steel	55 °C	-20 C	Silver	DPDT	30000 Cycles	Amber LED	No Marking	16.2 mm	Solder Lug
BULGIN LIMITED MP0045/1E1RD012S	3 A	IP67 - Dust Tight Waterproof	On-On	250 V	200000 Cycles	Illuminated Standard	12 VDC	Panel Mount Front	Button Flush Round	Stainless Steel	55 °C	-20 C	Silver	DPDT	30000 Cycles	LED Red	No Marking	16.2 mm	Solder Lug
BULGIN LIMITED MP0045/1D2GN220S	3 A	IP67 - Dust Tight Waterproof	On-Mom	250 V	200000 Cycles	Illuminated Standard	220 V	Panel Mount Front	Button Flush Round	Stainless Steel	55 °C	-20 C	Silver	DPDT	30000 Cycles	Green LED	No Marking	16.2 mm	Solder Lug
BULGIN LIMITED MP0045/1E1RD220S	3 A	IP67 - Dust Tight Waterproof	On-On	250 V	200000 Cycles	Illuminated Standard	220 V	Panel Mount Front	Button Flush Round	Stainless Steel	55 °C	-20 C	Silver	DPDT	30000 Cycles	LED Red	No Marking	16.2 mm	Solder Lug
BULGIN LIMITED MP0045/3D0NN000	3 A	IP40	On-Mom	250 V	200000 Cycles	Standard		Panel Mount Front	Button Round	Stainless Steel	55 °C	-20 C	Silver	DPDT	30000 Cycles		No Marking	16.2 mm	Solder Lug
BULGIN LIMITED MP0045/1E2BL220S	3 A	IP67 - Dust Tight Waterproof	On-On	250 V	200000 Cycles	Illuminated Standard	220 V	Panel Mount Front	Button Flush Round	Stainless Steel	55 °C	-20 C	Silver	DPDT	30000 Cycles	Blue LED	No Marking	16.2 mm	Solder Lug
BULGIN LIMITED MP0045/3E0NN000	3 A	IP40	On-On	250 V	200000 Cycles	Standard		Panel Mount Front	Button Round	Stainless Steel	55 °C	-20 C	Silver	DPDT	30000 Cycles		No Marking	16.2 mm	Solder Lug
BULGIN LIMITED MP0045/1E2AM012	3 A	IP40	On-On	250 V	200000 Cycles	Illuminated Standard	12 VDC	Panel Mount Front	Button Flush Round	Stainless Steel	55 °C	-20 C	Silver	DPDT	30000 Cycles	Amber LED	No Marking	16.2 mm	Solder Lug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 32.43
		10	$ 29.52
		25	$ 28.14
		50	$ 26.25
		100	$ 25.23
		250	$ 23.51

Description

General part information

MP0045 Series

Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Front
