A7PPB-3706G
ActiveTE Connectivity AMP Connectors
CABLE D-SUB-AMM37B/AE37G/AMM37B
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A7PPB-3706G
ActiveTE Connectivity AMP Connectors
CABLE D-SUB-AMM37B/AE37G/AMM37B
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A7PPB-3706G | A7PPB Series |
|---|---|---|
| 1st Connector | Plug, Male Pins | Plug, Male Pins |
| 2nd Connector | Plug, Male Pins | Plug, Male Pins |
| Color | - | Ribbon, Multiple |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Length | 6 ft | 6 - 10 ft |
| Length | 1.83 m | 1.83 - 3.05 m |
| Number of Positions | 37 | 9 - 50 |
| Shielding | Unshielded | Unshielded |
| Type | DB37 | DB9, DB50, DB15, DB25, DB37 |
| Usage | Patch | Patch |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 40.85 | |
| 10 | $ 33.86 | |||
| 25 | $ 31.43 | |||
| 50 | $ 29.72 | |||
| 100 | $ 28.10 | |||
| 250 | $ 26.11 | |||
A7PPB Series
CABLE D-SUB-AMM09B/AE09M/AMM09B
| Part | 2nd Connector | Length | Length | Contact Finish | Number of Positions | Type | 1st Connector | Shielding | Contact Finish Thickness | Contact Finish Thickness | Color | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A7PPB-0906M | Plug, Male Pins | 6 ft | 1.83 m | Gold | 9 | DB9 | Plug, Male Pins | Unshielded | 0.76 Ám | 30 Áin | Multiple, Ribbon | Patch |
TE Connectivity AMP Connectors A7PPB-5006M | Plug, Male Pins | 6 ft | 1.83 m | Gold | 50 | DB50 | Plug, Male Pins | Unshielded | 0.76 Ám | 30 Áin | Multiple, Ribbon | Patch |
TE Connectivity AMP Connectors A7PPB-1506G | Plug, Male Pins | 6 ft | 1.83 m | Gold | 15 | DB15 | Plug, Male Pins | Unshielded | 0.76 Ám | 30 Áin | Patch | |
TE Connectivity AMP Connectors A7PPB-1510M | Plug, Male Pins | 10 ft | 3.05 m | Gold | 15 | DB15 | Plug, Male Pins | Unshielded | 0.76 Ám | 30 Áin | Multiple, Ribbon | Patch |
TE Connectivity AMP Connectors A7PPB-0910M | Plug, Male Pins | 10 ft | 3.05 m | Gold | 9 | DB9 | Plug, Male Pins | Unshielded | 0.76 Ám | 30 Áin | Multiple, Ribbon | Patch |
TE Connectivity AMP Connectors A7PPB-2506M | Plug, Male Pins | 6 ft | 1.83 m | Gold | DB25 | Plug, Male Pins | Unshielded | 0.76 Ám | 30 Áin | Multiple, Ribbon | Patch | |
TE Connectivity AMP Connectors A7PPB-2506G | Plug, Male Pins | 6 ft | 1.83 m | Gold | DB25 | Plug, Male Pins | Unshielded | 0.76 Ám | 30 Áin | Patch | ||
TE Connectivity AMP Connectors A7PPB-3706G | Plug, Male Pins | 6 ft | 1.83 m | Gold | 37 | DB37 | Plug, Male Pins | Unshielded | 0.76 Ám | 30 Áin | Patch | |
TE Connectivity AMP Connectors A7PPB-1510G | Plug, Male Pins | 10 ft | 3.05 m | Gold | 15 | DB15 | Plug, Male Pins | Unshielded | 0.76 Ám | 30 Áin | Patch | |
TE Connectivity AMP Connectors A7PPB-0910G | Plug, Male Pins | 10 ft | 3.05 m | Gold | 9 | DB9 | Plug, Male Pins | Unshielded | 0.76 Ám | 30 Áin | Patch |
Description
General part information
A7PPB Series

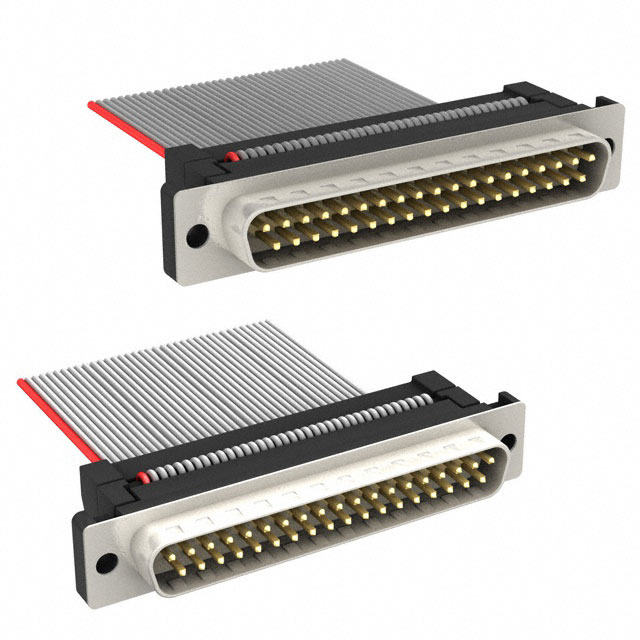

D-Sub Cable Assembly DB37 Gray, Ribbon 6.00' (1.83m) Plug, Male Pins to Plug, Male Pins Unshielded
