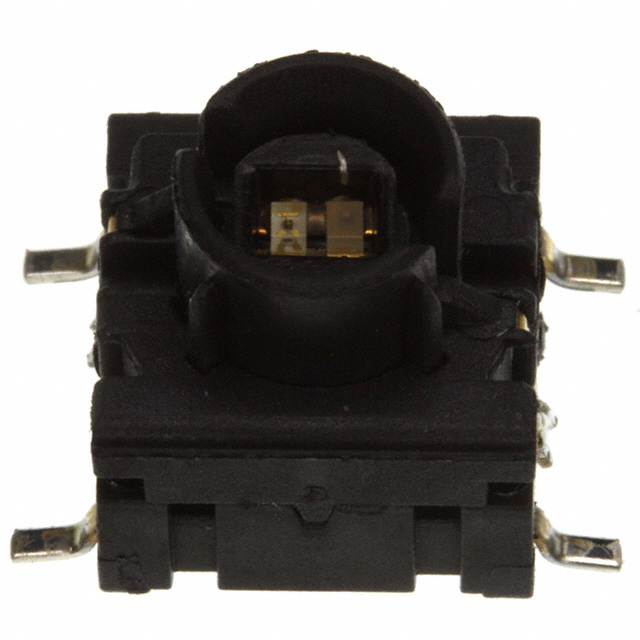

4FSH98222
ActiveMEC Switches
ROUND BUTTON 50MA VERTICAL WELDING SPST - NORMALLY OPEN 24V 3N TACTILE SWITCHES ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
4FSH98222
ActiveMEC Switches
ROUND BUTTON 50MA VERTICAL WELDING SPST - NORMALLY OPEN 24V 3N TACTILE SWITCHES ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 4FSH98222 |
|---|---|
| Actuator Height off PCB, Vertical | 10.4 mm |
| Actuator Material | Polyphenylene Sulfide (PPS) |
| Actuator Orientation | Top Actuated |
| Actuator Type | Plunger for Cap |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 24 VDC |
| Features | Sealed - Flux Protection |
| Illumination | Illuminated |
| Illumination Type, Color | Green/Red, LED |
| Illumination Voltage (Nominal) | 2 VDC, 2.2 VDC |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 10000000 Cycles |
| Mounting Type | Surface Mount |
| Operating Force | 300 gf |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Outline [x] | 10.1 mm |
| Outline [y] | 10.1 mm |
| Switch Function | Off-Mom |
| Switch Travel | 1 mm |
| Termination Style | Gull Wing |
4FSH9 Series
| Part | Features | Mechanical Life | Actuator Material | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Circuit | Illumination Voltage (Nominal) | Contact Rating @ Voltage | Termination Style | Switch Function | Outline [x] | Outline [y] | Illumination | Actuator Type | Actuator Orientation | Illumination Type, Color | Operating Force | Ingress Protection | Switch Travel | Actuator Height off PCB, Vertical |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MEC Switches | Sealed - Flux Protection | 10000000 Cycles | Polyphenylene Sulfide (PPS) | Surface Mount | -30 ░C | 85 °C | SPST-NO | 2.2 VDC | 0.05 A 24 VDC | Gull Wing | Off-Mom | 10.1 mm | 10.1 mm | Illuminated | Plunger for Cap | Top Actuated | Green LED | 300 gf | IP67 - Dust Tight Waterproof | 1 mm | 10.4 mm |
MEC Switches | Sealed - Flux Protection | 10000000 Cycles | Polyphenylene Sulfide (PPS) | Surface Mount | -30 ░C | 85 °C | SPST-NO | 2 VDC | 0.05 A 24 VDC | Gull Wing | Off-Mom | 10.1 mm | 10.1 mm | Illuminated | Plunger for Cap | Top Actuated | LED Red | 300 gf | IP67 - Dust Tight Waterproof | 1 mm | 10.4 mm |
MEC Switches | Sealed - Flux Protection | 10000000 Cycles | Polyphenylene Sulfide (PPS) | Surface Mount | -30 ░C | 85 °C | SPST-NO | 3.05 VDC | 0.05 A 24 VDC | Gull Wing | Off-Mom | 10.1 mm | 10.1 mm | Illuminated | Plunger for Cap | Top Actuated | LED White | 300 gf | IP67 - Dust Tight Waterproof | 1 mm | 10.4 mm |
MEC Switches | Sealed - Flux Protection | 10000000 Cycles | Polyphenylene Sulfide (PPS) | Surface Mount | -30 ░C | 85 °C | SPST-NO | 2 VDC 2.2 VDC | 0.05 A 24 VDC | Gull Wing | Off-Mom | 10.1 mm | 10.1 mm | Illuminated | Plunger for Cap | Top Actuated | Green/Red LED | 300 gf | IP67 - Dust Tight Waterproof | 1 mm | 10.4 mm |
MEC Switches | Sealed - Flux Protection | 10000000 Cycles | Polyphenylene Sulfide (PPS) | Surface Mount | -30 ░C | 85 °C | SPST-NO | 0.05 A 24 VDC | Gull Wing | Off-Mom | 10.1 mm | 10.1 mm | Illuminated | Plunger for Cap | Top Actuated | Blue LED | 300 gf | IP67 - Dust Tight Waterproof | 1 mm | 10.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
4FSH9 Series
Tactile Switch SPST-NO Top Actuated Surface Mount
