031-30220-1

Active

AMPHENOL RF

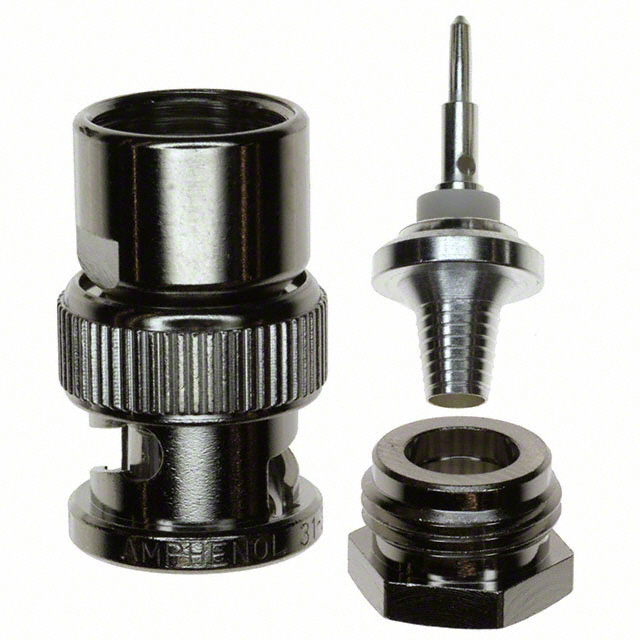

CONN BNC 0HZ TO 4GHZ 50OHM CLAMP ST CABLE MOUNT PL SILVER

Deep-Dive with AI

Search across all available documentation for this part.

031-30220-1

Active

AMPHENOL RF

CONN BNC 0HZ TO 4GHZ 50OHM CLAMP ST CABLE MOUNT PL SILVER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	031-30220-1	031-30 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58, Size-8 Triax
Center Contact Material	Brass	Brass, Beryllium Copper
Center Contact Plating	Silver	Silver, Gold
Connector Style	BNC	BNC, Triaxial
Connector Type	Male Pin, Plug	Male Pin, Plug, Female Socket, Jack
Contact Termination	Crimp	Crimp, Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	4 GHz	4 - 500 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Impedance	-	Non-Constant
Includes	1 Contact, 1 Clamp, 1 Connector	1 Contact, 1 Clamp, 1 Connector, 1 Insulator, 3 Braid Clamps, 1 Bushing, 2 Gaskets, 1 Nut, 1 Lockwasher
Ingress Protection	-	Weatherproof
Insertion Loss	0.2 dB	0.2 dB
Mating Cycles	500	500
Mounting Feature	-	Bulkhead - Front Side Nut
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Clamp	Clamp
Voltage Rating	500 V	500 - 5000 V

031-30 Series

CONN BNC 0HZ TO 4GHZ 50OHM CLAMP ST CABLE MOUNT PL SILVER

Part	Connector Style	Frequency - Max [Max]	Mating Cycles	Cable Group	Body Finish	Mounting Type	Voltage Rating	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Insertion Loss	Housing Color	Body Material	Center Contact Plating	Number of Ports	Fastening Type	Dielectric Material	Contact Termination	Center Contact Material	Connector Type	Includes	Impedance	Mounting Feature	Ingress Protection	Impedance
AMPHENOL RF 031-30220-1	BNC	4 GHz	500	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58	Nickel	Free Hanging (In-Line)	500 V	Clamp	-65 ░C	165 °C	0.2 dB	Silver	Brass	Silver	1	Bayonet Lock	Polytetrafluoroethylene (PTFE)	Crimp	Brass	Male Pin, Plug	1 Clamp, 1 Connector, 1 Contact	50 Ohms
AMPHENOL RF 031-30232-4	BNC, Triaxial	50 MHz	500	Size-8 Triax	Nickel		5000 V	Clamp	-65 ░C	165 °C	0.2 dB	Silver	Brass	Gold	1	Bayonet Lock	Polytetrafluoroethylene (PTFE)	Solder	Beryllium Copper	Female Socket, Jack	1 Bushing, 1 Clamp, 1 Connector, 1 Insulator, 1 Lockwasher, 1 Nut, 2 Gaskets, 3 Braid Clamps		Bulkhead - Front Side Nut	Weatherproof	Non-Constant
AMPHENOL RF 031-30231-5	BNC, Triaxial	500 MHz	500		Nickel			Clamp	-65 ░C	165 °C	0.2 dB	Silver	Brass	Gold	1	Bayonet Lock	Polytetrafluoroethylene (PTFE)	Solder	Brass	Male Pin, Plug				Weatherproof	Non-Constant
AMPHENOL RF 031-30232-33	BNC, Triaxial	50 MHz	500	Size-8 Triax	Nickel		5000 V	Clamp	-65 ░C	165 °C	0.2 dB	Silver	Brass	Gold	1	Bayonet Lock	Polytetrafluoroethylene (PTFE)	Solder	Beryllium Copper	Female Socket, Jack	1 Bushing, 1 Clamp, 1 Connector, 1 Lockwasher, 1 Nut, 2 Gaskets, 3 Braid Clamps		Bulkhead - Front Side Nut	Weatherproof	Non-Constant
AMPHENOL RF 031-30231-77	BNC, Triaxial	500 MHz	500		Nickel			Clamp	-65 ░C	165 °C	0.2 dB	Silver	Brass	Gold	1	Bayonet Lock	Polytetrafluoroethylene (PTFE)	Solder	Brass	Male Pin, Plug				Weatherproof	Non-Constant

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 18.35
		10	$ 17.46

Description

General part information

031-30 Series

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp

Documents

Technical documentation and resources

No documents available
